Arizona Arctic Hose (911217)
| AMERICA SERIES |
 |

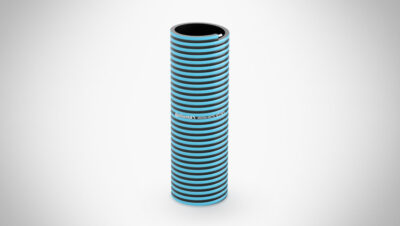

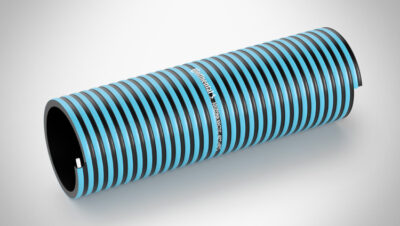

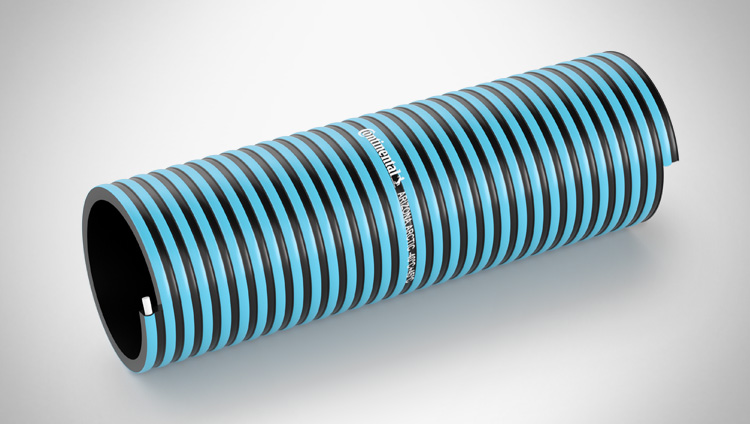

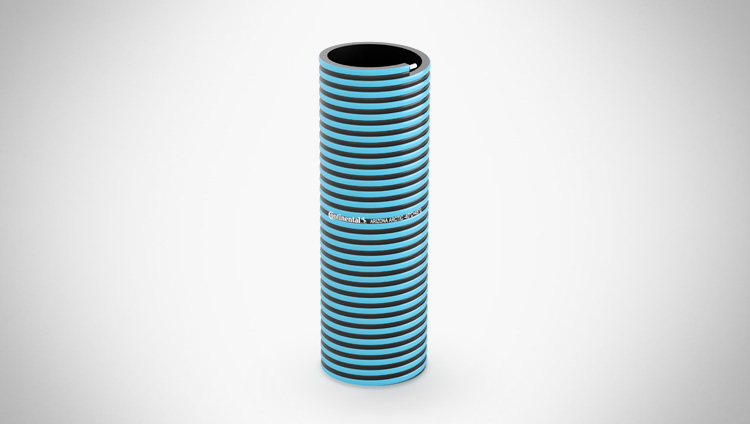

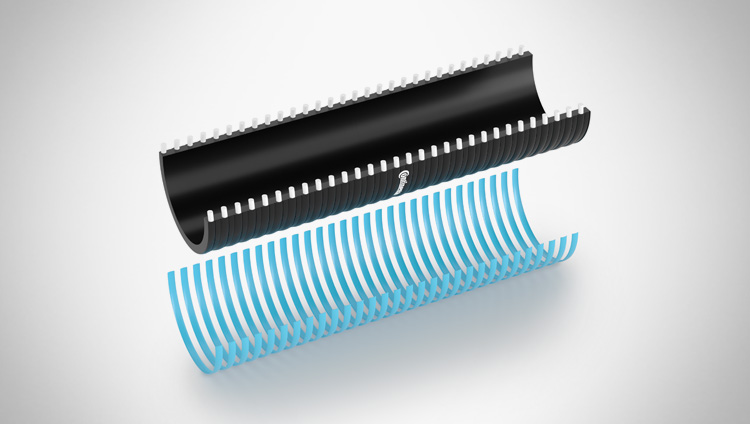

Arizona Arctic Hose (911217*) is a soft PVC hose with rigid PVC spiral, suitable for use in particularly cold climates, for delivery and suction of liquids. Also available in the antistatic version (BY REQUEST: code 911243).
Details
| Features | Value | |
 |
Smooth surface | ***** |
 |
Flexibility | ***** |
 |
Abrasion Resistance | *** |
 |
Temperature range | -40 °C 45 °C |
 |
Chemical Resistance | Contact TransDev |
 |
Crushing resistance | **** |
Specification
Ø Nominal |
Ø Nominal |
Ø i.d. |
Ø o.d. |
Working
|
Vacuum
|
Bursting
|
Bending radius |
Total thickness |
Ø rigid spiral (AxB if oval) |
Spiral pitch |
Spiral direction |
Weight
|
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | bar | m/H2O | bar | mm | mm | mm | mm | right/left | g/m | m |
| 51 | 2 | 50.8 | 61.8 | 3 | 9 | 9 | 165 | 5.5 | 4.8 | 9 | right | 1100 | 30 |
| 63 | 2 1/2 | 63.5 | 75.5 | 3 | 9 | 9 | 205 | 6 | 5.3 | 11 | right | 1450 | 30 |
| 76 | 3 | 76.2 | 89.2 | 3 | 9 | 9 | 260 | 6.5 | 6 | 11.5 | right | 1800 | 30 |
| 80 | 80 | 94 | 3 | 9 | 9 | 280 | 7 | 6.5 | 10.5 | right | 1900 | 30 | |
| 89 | 3 1/2 | 89 | 103 | 2.5 | 9 | 7.5 | 300 | 7 | 6.5 | 11.8 | right | 2250 | 30 |
| 102 | 4 | 101.6 | 117 | 2 | 9 | 6 | 330 | 7.7 | 6.7 | 13 | right | 2800 | 30 |
| 110 | 110 | 126.4 | 1.5 | 9 | 4.5 | 360 | 8.2 | 7.2 | 11.5 | right | 3400 | 20 | |
| 127 | 5 | 127 | 144 | 1 | 9 | 3 | 420 | 8.5 | 7.8 | 14 | right | 4000 | 20 |
| 152 | 6 | 152.4 | 170 | 1 | 9 | 3 | 510 | 8.8 | 8.5 | 15 | right | 5000 | 20 |
All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
