Luisiana OM Hose (911067)
| AMERICA SERIES |
 |

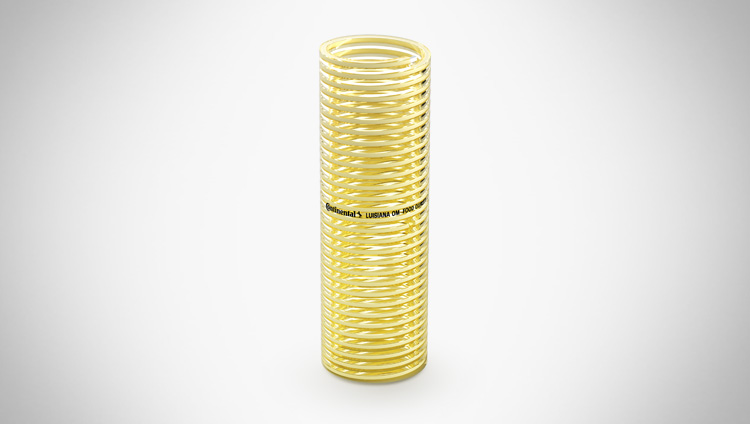

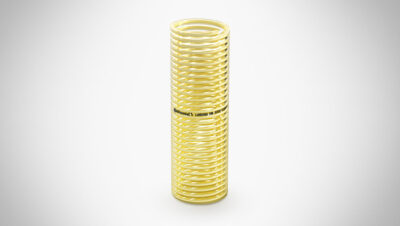

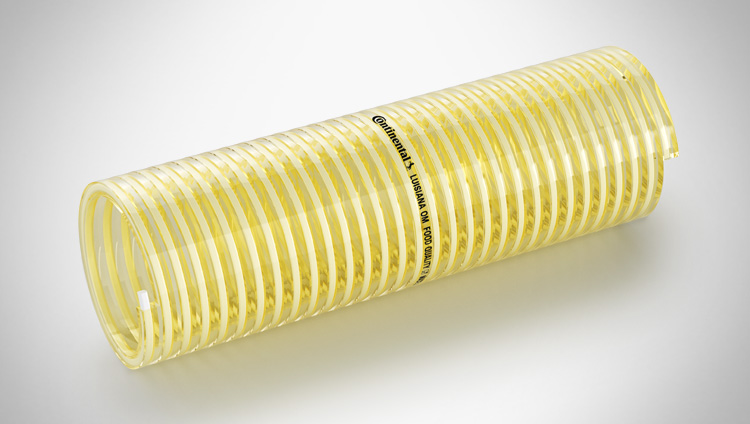

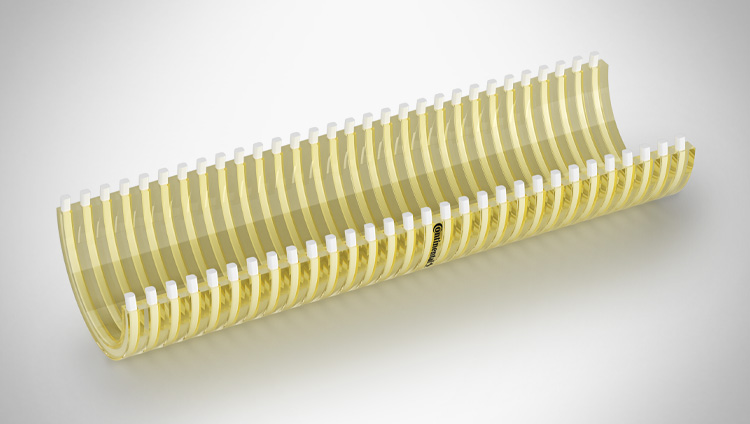

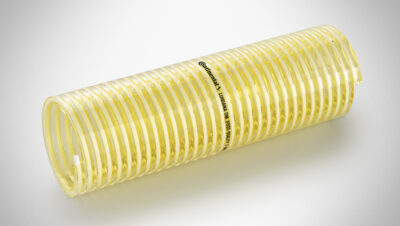

Luisiana OM Hose (911067) is a PVC hose with PVC rigid spiral, for delivery and suction of food liquids. Light duty version.
Details
| Features | Value | |
 |
Smooth surface | ***** |
 |
Flexibility | **** |
 |
Abrasion Resistance | **** |
 |
Temperature range | -5 °C 60 °C |
 |
Chemical Resistance | Contact TransDev |
 |
Crushing resistance | ** |
 |
For food | EU according to Declaration of Conformity. |
Specification
Ø Nominal |
Ø Nominal |
Ø i.d. |
Ø o.d. |
Working
|
Vacuum
|
Bursting
|
Bending radius |
Total thickness |
Ø rigid spiral (AxB if oval) |
Spiral pitch |
Spiral direction |
Weight
|
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | bar | m/H2O | bar | mm | mm | mm | mm | right/left | g/m | m |
| 19 | 19 | 23.6 | 6 | 8 | 18 | 65 | 2.3 | 2.2×3.3 | 7 | right | 190 | 50 | |
| 20 | 20 | 24.9 | 6.5 | 8 | 19.5 | 110 | 2.4 | 2.3×3.6 | 6.5 | right | 210 | 50 | |
| 20.8 | 20.8 | 25.8 | 6.5 | 8 | 19.5 | 110 | 2.5 | 2.3×3.6 | 6.5 | right | 230 | 50 | |
| 25 | 1 | 25 | 29.7 | 6.5 | 8 | 19.5 | 140 | 2.4 | 2.3×3.4 | 7.4 | right | 250 | 50 |
| 29.5 | 29.5 | 34.5 | 6 | 8 | 18 | 175 | 2.5 | 2.3×3.6 | 7.3 | right | 300 | 50 | |
| 30 | 30 | 35 | 6 | 8 | 18 | 175 | 2.5 | 2.4×3.8 | 7.5 | right | 330 | 50 | |
| 32 | 1 1/4 | 32 | 37.2 | 6 | 8 | 18 | 180 | 2.6 | 2.4×4 | 7.7 | right | 350 | 50 |
| 35 | 35 | 40.4 | 6 | 8 | 18 | 195 | 2.7 | 2.6×4.2 | 7.7 | right | 400 | 50 | |
| 38 | 1 1/2 | 38 | 43.6 | 6 | 8 | 18 | 210 | 2.8 | 2.5×4 | 7.8 | right | 430 | 50 |
| 40 | 40 | 46 | 5.5 | 8 | 16.5 | 220 | 3 | 2.8×4 | 7.8 | right | 480 | 50 | |
| 45 | 1 3/4 | 45 | 52 | 5.5 | 8 | 16.5 | 255 | 3.5 | 3×4.7 | 7.8 | right | 640 | 50 |
| 50 | 2 | 50 | 58.5 | 5 | 8 | 15 | 275 | 4.1 | 4 | 8.3 | right | 760 | 50 |
| 51 | 2 | 51.3 | 59.5 | 5 | 8 | 15 | 280 | 4.1 | 8.5 | right | 760 | 50 | |
| 55 | 55 | 63.6 | 4.5 | 8 | 13.5 | 310 | 4.3 | 9.8 | right | 860 | 50 | ||
| 60 | 60 | 68.4 | 4 | 8 | 12 | 330 | 4.2 | 4 | 8.3 | right | 900 | 50 | |
| 63 | 2 1/2 | 63 | 71.2 | 4 | 8 | 12 | 350 | 4.1 | 3.9 | 8.5 | right | 970 | 50 |
| 65 | 65 | 73.2 | 4 | 8 | 12 | 360 | 4.1 | 8.1 | right | 1030 | 50 | ||
| 70 | 70 | 79 | 3 | 8 | 9 | 450 | 4.5 | 4.3 | 8.8 | right | 1125 | 50 | |
| 75 | 75 | 84.4 | 3 | 8 | 9 | 500 | 4.7 | 4.5 | 9.1 | right | 1200 | 50 | |
| 80 | 80 | 89.4 | 3 | 8 | 9 | 550 | 4.7 | 4.4 | 10.5 | right | 1450 | 25 |
All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
