Armorvinpress Hose (913039)
| ARMORVIN SERIES |
 |

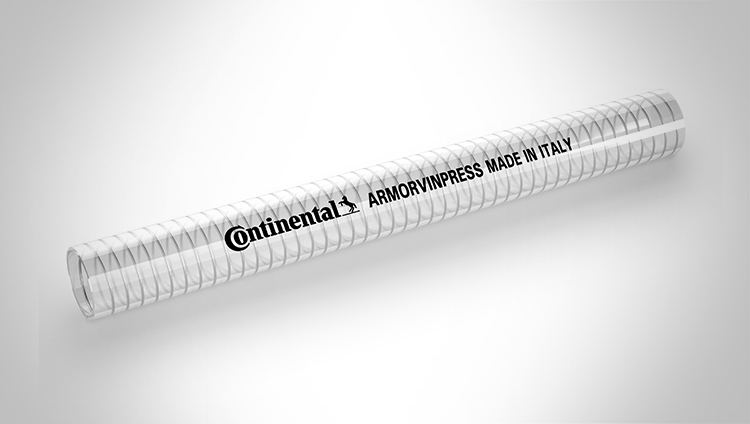

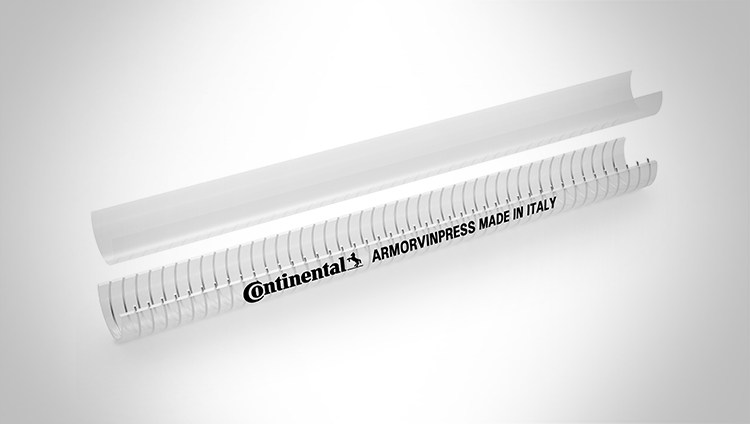

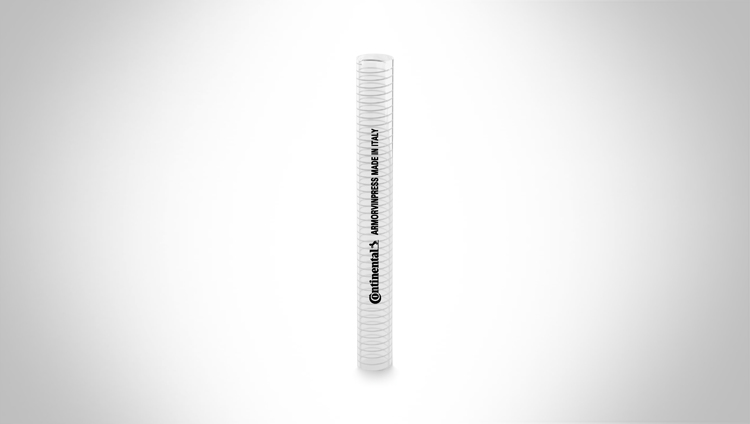

Armorvinpress Hose (913039) is a PVC hose with embedded narrow-gauge galvanized steel spiral, for suction and delivery of liquids and air in the pneumatic, plumbing, hydraulic, and chemical industries.
Details
| Features | Value | |
 |
Smooth surface | ***** |
 |
Flexibility | **** |
 |
Abrasion resistance | *** |
 |
Temperature range | -5 °C 65 °C |
 |
Chemical Resistance | Contact TransDev |
 |
Crushing resistance | *** |
Specification
Ø Nominal |
Ø Nominal |
Ø
|
Ø o.d. |
Vacuum
|
Working
|
Bursting
|
Bending radius |
Total thickness |
Ø Steel wire |
Spiral pitch |
Spiral direction |
Weight |
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | m/H2O | bar | bar | mm | mm | mm | mm | right/left | g/m | m |
| 5 | 3/16 | 5 | 10 | 9 | 20 | 60 | 20 | 2.5 | 0.55 | 2.8 | right | 85 | 60 |
| 6 | 6 | 11 | 9 | 18 | 54 | 23 | 2.5 | 0.55 | 3 | right | 100 | 60 | |
| 7 | 1/4 | 6.4 | 11.5 | 9 | 18 | 54 | 26 | 2.55 | 0.55 | 3 | right | 105 | 60 |
| 8 | 5/16 | 8 | 13.5 | 9 | 16 | 48 | 32 | 2.75 | 0.7 | 3.5 | right | 140 | 60 |
| 9 | 3/8 | 9.5 | 15.5 | 9 | 16 | 48 | 38 | 3 | 0.7 | 4 | right | 170 | 60 |
| 10 | 10 | 16 | 9 | 15 | 45 | 40 | 3 | 0.7 | 4 | right | 180 | 60 | |
| 12 | 12 | 18 | 9 | 15 | 45 | 45 | 3 | 0.8 | 4.5 | right | 210 | 60 | |
| 13 | 1/2 | 12.7 | 19 | 9 | 12 | 36 | 50 | 3.15 | 0.8 | 4.5 | right | 230 | 60 |
| 14 | 14 | 20.5 | 9 | 12 | 36 | 56 | 3.25 | 0.8 | 5 | right | 260 | 60 | |
| 16 | 5/8 | 16 | 23 | 9 | 12 | 36 | 63 | 3.5 | 0.8 | 5.2 | right | 300 | 60 |
| 18 | 18 | 25 | 9 | 10 | 30 | 70 | 3.5 | 0.8 | 5.5 | right | 320 | 60 | |
| 19 | 3/4 | 19.1 | 26 | 9 | 10 | 30 | 76 | 3.45 | 0.8 | 5.7 | right | 350 | 60 |
| 20 | 20 | 27 | 9 | 10 | 30 | 80 | 3.5 | 0.8 | 5.6 | right | 350 | 60 |
All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
