Tube Winder Belts

Tube Winder Belts

Truly endless belts are used in the Cardboard Tube & Core producing industry

The belts are specially tailored to deliver the required strength, grip and stability in this challenging application.

Why TransDev for Tube Winder Belts?

  • Various belt types
  • Major machines supported
  • Full technical support and site visits available
  • Competitive pricing
  • Stock holding possible against a contract

LONG LIFE

Can be installed on a small mandrel and applied for a hard twist within a short distance. Prevents over-tensioning by maintaining even contact pressure against mandrel.

LESS POWER CONSUMPTION

  • Less power consumption
  • Less mandrel abrasion
  • Less load on equipment

LOW LOAD

Minimizes uneven elongation and uneven abrasion. Enables stable tube-winding due to even contact pressure against paper material.

TYPE PG
  • Natural/Butadiene rubber compound
  • Smooth ground surfaces
  • Flexible & strong construction
  • Symmetrical design allows both sides to be used
  • White rubber available for food/non marking.
Type Maximum Length
(mm)
Maximum Width
(mm)
Thickness
(mm)
Breaking Strength
(N/mm)
Minimum Tube diameter
(mm Ø)
PG-300-6 9000 600 6.0 300 40
PG-450-8 9000 600 8.0 450 60
PG-500-6 9000 600 6.0 500 60
PG-1000-8 9000 600 8.0 1000 80

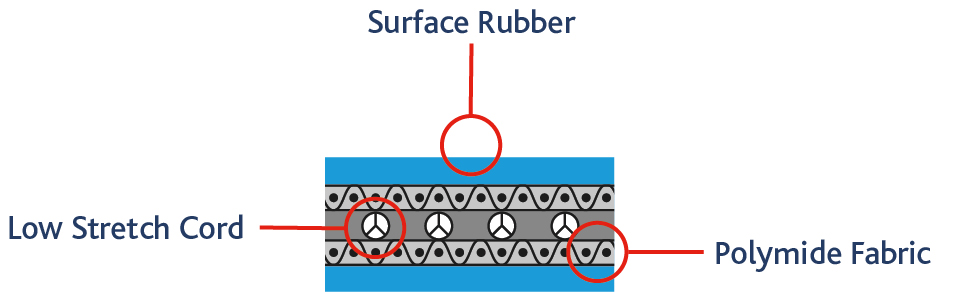

TYPE ZS
  • Nitrile Butadiene rubber compound
  • Textured surfaces
  • Excellent flexibility and strength characteristics
  • Symmetrical design allows both sides to be used
  • High grip ensures no slippage
Type Maximum Length
(mm)
Maximum Width
(mm)
Thickness
(mm)
Tension
(2% elongation)
(N/mm)
Minimum Tube diameter
(mm Ø)
ZS-TWL-42H 5000 280 4.2 13 25
ZS-TWL-46H 5000 280 4.6 18 75
ZS-TWL-56H 5000 280 5.6 18 75
