T5 & T5-DL Standard CONTI SYNCHROFLEX®
Polyurethane, steel reinforced, cast truly endless, standard T Profile to DIN 7721 in metric pitch with trapezoidal toothform.

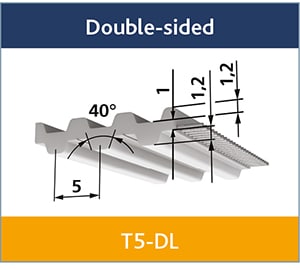

CONTI SYNCHROFLEX® timing belt T5/T5 -DL

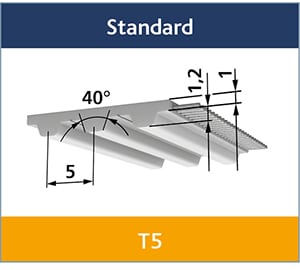

Standard T profile to DIN 7721 with metric pitch and trapezoidal toothform. The technical data refer to standard polyurethane and standard steel cord tension members.
Available versions:
- Single-sided (as standard)
- With E tension member for increased flexibility
- With Aramid tension member
- Polyurethane special materials upon request
- Antistatic, coloured, mechanical reworked
- Special polyurethanes upon request
- Antistatic, coloured, machined, ground and punched belts
- Backings
Technical Specification
| T5 – Allowable tensile load by belt width | ||||||
|---|---|---|---|---|---|---|
| Belt width | Belt width | 6 | 10 | 16 | 25 | 50 |
| Tension member loadings | Fadm(N) | 180 | 330 | 570 | 930 | 1920 |
| Belt weight | kg/m | 0.017 | 0.027 | 0.043 | 0.068 | 0.135 |
| Standard lengths (mm)/Number of teeth |
| Length | No. teeth | Stock lengths |
|---|---|---|
| 100 | 20 |  |
| 150 | 30 | |
| 150DL | 30 | |
| 165 | 33 | |
| 180 | 36 | |
| 185 | 37 | |
| 200 | 40 | |
| 210 | 42 | |
| 215 | 43 | |
| 220 | 44 | |
| 225 | 45 | |
| 225 FN90 | 45 | ◯ |
| 245 | 49 | |
| 250 | 50 | |
| 255 | 51 | |
| 260 | 52 | |
| 260DL | 52 | |
| 270 | 54 | |
| 280 | 56 | |
| 295 | 59 | |
| 300DL | 60 | |
| 305 | 61 | |
| 330 | 66 | |
| 330DL | 66 | |
| 340 | 68 | |
| 355 | 71 | |
| 365 | 73 | |
| 390 | 78 | |
| 390 FN1 | 78 | ◯ |
| 400 | 80 | |
| 410 | 82 | |
| 410DL | 82 | |
| 420 | 84 | |
| 455 | 91 | |
| 460 | 92 | |
| 460 FN4 | 92 | ◯ |
| 460DL | 92 | |
| 480 | 96 | |
| 500 | 100 | |
| 500 FN10 | 100 | ◯ |
| 505 | 101 | |
| 510 | 102 | |
| 510 FN1 | 102 | ◯ |
| 515DL | 103 | |
| 525 | 105 | |
| 525 FA | 105 | ◯ |
| 525DL | 105 | |
| 545 | 109 | |
| 550 | 110 | |
| 560 | 112 | |
| 575 | 115 | |
| 590 | 118 | |
| 590DL | 118 | |
| 600 FN24 | 120 | ◯ |
| 610 | 122 | |
| 615 FN24 | 123 | ◯ |
| 620 | 124 | |
| 620DL | 124 | |
| Length | No. teeth | Stock lengths |
|---|---|---|
| 625DL | 125 | |
| 630 | 126 | |
| 630 FA | 126 | ◯ |
| 650 | 130 | |
| 650 FA | 130 | ◯ |
| 660 | 132 | |
| 660 FN30 | 132 | ◯ |
| 690 | 138 | |
| 690 FA | 138 | ◯ |
| 690 FN3 | 138 | ◯ |
| 700 | 140 | |
| 720 | 144 | |
| 725 | 145 | |
| 750 | 150 | |
| 750DL | 150 | |
| 765 | 153 | |
| 780 | 156 | |
| 800 | 160 | |
| 800 FN2 | 160 | ◯ |
| 815 | 163 | |
| 815DL | 163 | |
| 840 | 168 | |
| 840 FN84 | 168 | ◯ |
| 860 FN1 | 168 | ◯ |
| 860DL | 172 | |
| 900 | 180 | |
| 920 | 184 | |
| 925 | 185 | |
| 925 FN1 | 185 | ◯ |
| 940 | 188 | |
| 940DL | 188 | |
| 990 | 198 | |
| 990 FA | 198 | ◯ |
| 990 FN4 | 198 | ◯ |
| 1075 | 215 | |
| 1075 FA | 215 | ◯ |
| 1100 | 220 | |
| 1100DL | 220 | |
| 1160 | 232 | |
| 1160 FA | 232 | ◯ |
| 1215 | 243 | |
| 1215 FN1 | 243 | ◯ |
| 1215 FN54 | 243 | ◯ |
| 1315 | 263 | |
| 1315 FA | 263 | ◯ |
| 1325DL | 265 | |
| 1350 FN1 | 270 | ◯ |
| 1380 | 276 | |
| 1380 FN1 | 276 | ◯ |
| 1440 FA | 276 | ◯ |
| 1500 | 300 | |
| 1500 FA | 300 | ◯ |
| 1525 FN1 | 305 | ◯ |
Preferred belt width in (mm) 6, 10, 16, 25, 32, 50. Other dimensions upon request.
✓ Available
◯ Available on request
– Unavailable
DL double-sided
FA with bigger back thickness
FN with profiles on the back of the belt
Drive Type A
| Type A | T5 |  |
|---|---|---|
| Zmin | 10 | |
| dmin | 30 |
Drive Type B
| Type B | T5 | |
|---|---|---|
| Zmin | 15 | |
| dmin | 30 |
Zmin = Minimum number of teeth. dmin= Minimum diameter (mm)
