ATP10 & ATP15 Pilot Bore Pulleys
| ATP10 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

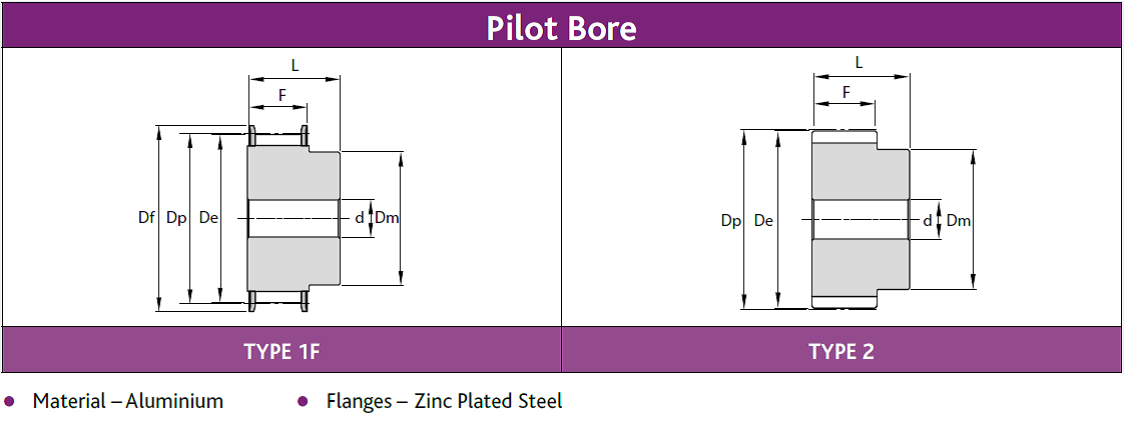

| Code | Type | No.teeth | De | Dp | Df | Dm | F | L | Bore (d) | No. flanges |
| AL70ATP10/20-2 | 1F | 20 | 62.06 | 63.66 | 67 | 46 | 60 | 70 | 12 | 2 |
| AL70ATP10/24-2 | 1F | 24 | 74.79 | 76.39 | 80 | 58 | 60 | 70 | 12 | 2 |
| AL70ATP10/30-2 | 1F | 30 | 93.89 | 95.49 | 99 | 60 | 60 | 70 | 12 | 2 |
| AL70ATP10/32-2 | 1F | 32 | 100.26 | 101.86 | 105 | 65 | 60 | 70 | 12 | 2 |
| AL70ATP10/36-2 | 1F | 36 | 112.99 | 114.59 | 118 | 70 | 60 | 70 | 16 | 2 |
| AL70ATP10/40-2 | 1F | 40 | 125.72 | 127.32 | 131 | 80 | 60 | 70 | 16 | 2 |
| AL70ATP10/44-0 | 2 | 44 | 138.46 | 140.06 | – | 90 | 60 | 70 | 16 | 0 |
| AL70ATP10/48-0 | 2 | 48 | 151.19 | 152.79 | – | 95 | 60 | 70 | 16 | 0 |
| AL70ATP10/60-0 | 2 | 60 | 189.39 | 190.99 | – | 110 | 60 | 70 | 16 | 0 |
| ATP15 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Type | No.teeth | De | Dp | Df | Dm | F | L | Bore (d) | No. flanges |
| AL70ATP15/25-2 | 1F | 25 | 116.79 | 119.37 | 125 | 50 | 60 | 70 | 12 | 2 |
| AL70ATP15/28-2 | 1F | 28 | 131.11 | 133.69 | 137 | 58 | 60 | 70 | 12 | 2 |
| AL70ATP15/30-2 | 1F | 30 | 140.66 | 143.24 | 147 | 60 | 60 | 70 | 12 | 2 |
| AL70ATP15/32-2 | 1F | 32 | 150.21 | 152.79 | 156 | 65 | 60 | 70 | 12 | 2 |
| AL70ATP15/36-2 | 1F | 36 | 169.31 | 171.89 | 176 | 70 | 60 | 70 | 16 | 2 |
| AL70ATP15/40-2 | 1F | 40 | 188.41 | 190.99 | 195 | 80 | 60 | 70 | 16 | 2 |
| AL70ATP15/44-0 | 2 | 44 | 207.50 | 210.08 | – | 140 | 60 | 70 | 16 | 0 |
| AL70ATP15/48-0 | 2 | 48 | 226.60 | 229.18 | – | 140 | 60 | 70 | 16 | 0 |
| AL70ATP15/60-0 | 2 | 60 | 283.90 | 286.48 | – | 160 | 60 | 70 | 20 | 0 |
NB: All pulleys on this page are non-stock items and are manufactured to order.
Please note: The table shows pulleys for 50mm wide belts. Pulleys for other belt widths are also available.
Pulleys available to suit belt width from 16mm-150mm made to order.
All dimensions subject to change. Pulleys may be Bored or Unbored.
If a dimension is critical to your application please contact our Sales Department for confirmation.
For special or reworked pulleys please contact our Manufacturing Department for a quotation.
