Metric Splined Bushes in Steel
- Material : Steel (11SMnPb37)
- Special executions on request

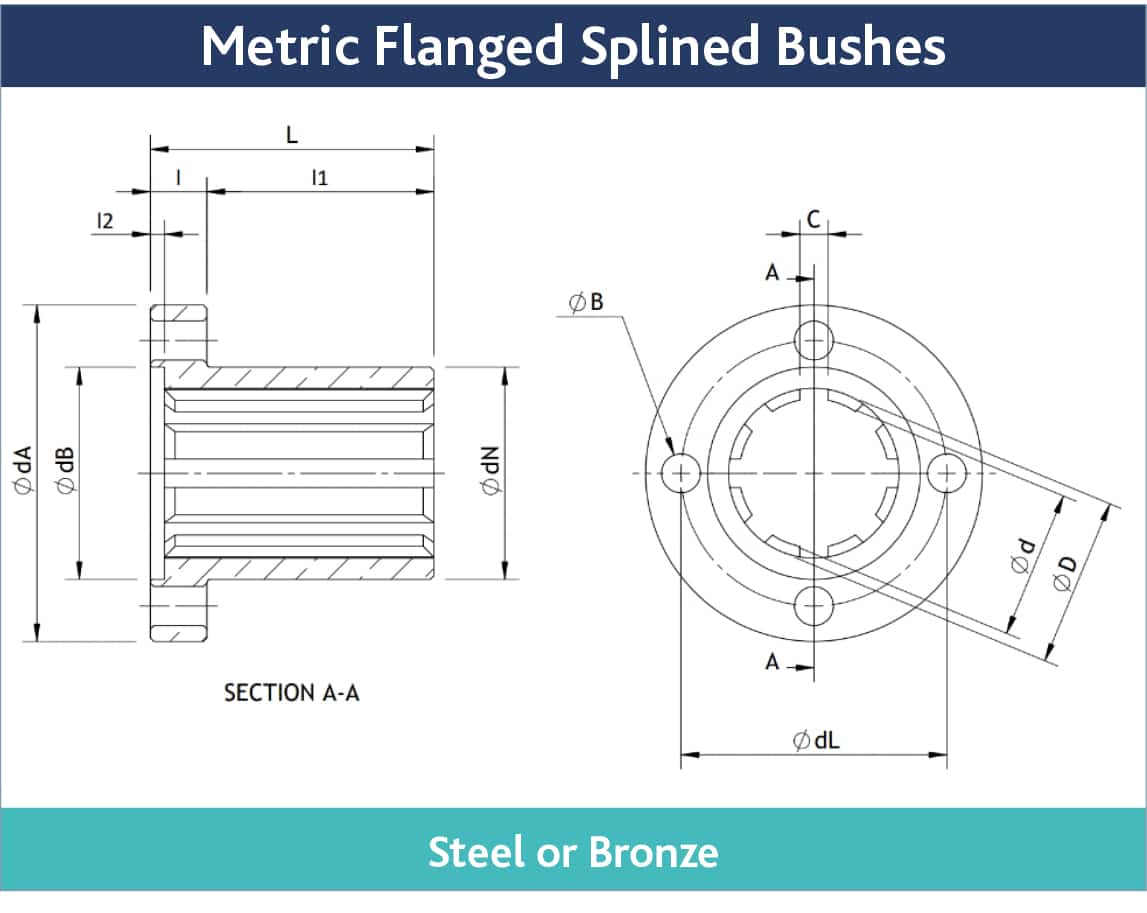

| Metric Flanged Splined Bushes |
|---|
 |
| Steel |
- With flange
- Material: Steel C45
- More sizes available to order
- Special executions on request
| Type in Steel (11SMnPb37) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Stock No | D | d | c | Number of Splines | ∅A (H8) | L | Weight
Kg/m
|
Tolerances | ||
| D (H11) |
d | c (D9) |
||||||||
| SPH14x11x3 | 14 | 11 | 3 | 6 | 18.75 | 30 | 0.033 | +0.11 | +0.030 | +0.045 |
| +0.00 | +0.010 | +0.020 | ||||||||
| SPH16x13x3.5 | 16 | 13 | 3.5 | 6 | 21.75 | 40 | 0.062 | +0.11 | +0.030 | +0.060 |
| +0.00 | +0.010 | +0.030 | ||||||||
| SPH16x13x3.5B | 16 | 13 | 3.5 | 6 | 24.75 | 40 | 0.097 | +0.11 | +0.030 | +0.060 |
| +0.00 | +0.010 | +0.030 | ||||||||
| SPH20x16x4 | 20 | 16 | 4 | 6 | 27.75 | 40 | 0.108 | +0.13 | +0.030 | +0.060 |
| +0.00 | +0.010 | +0.030 | ||||||||
| SPH22x18x5 | 22 | 18 | 5 | 6 | 31.75 | 40 | 0.146 | +0.13 | +0.030 | +0.060 |
| +0.00 | +0.010 | +0.030 | ||||||||
| SPH25x21x5 | 25 | 21 | 5 | 6 | 35.75 | 45 | 0.208 | +0.13 | +0.030 | +0.060 |
| +0.00 | +0.010 | +0.030 | ||||||||
| SPH28x23x6 | 28 | 23 | 6 | 6 | 39.70 | 45 | 0.254 | +0.13 | +0.030 | +0.060 |
| +0.00 | +0.010 | +0.030 | ||||||||
| SPH32x26x6 | 32 | 26 | 6 | 6 | 44.70 | 45 | 0.322 | +0.16 | +0.030 | +0.060 |
| +0.00 | +0.010 | +0.030 | ||||||||
| SPH38x32x6 | 38 | 32 | 6 | 8 | 49.70 | 50 | 0.380 | +0.16 | +0.030 | +0.060 |
| +0.00 | +0.010 | +0.030 | ||||||||
| SPH42x36x7 | 42 | 36 | 7 | 8 | 59.70 | 70 | 0.880 | +0.16 | +0.030 | +0.076 |
| +0.00 | +0.010 | +0.040 | ||||||||
| SPH48x42x8 | 48 | 42 | 8 | 8 | 69.70 | 80 | 1.380 | +0.16 | +0.030 | +0.076 |
| +0.00 | +0.010 | +0.040 | ||||||||
| SPH54x46x9 | 54 | 46 | 9 | 8 | 81.70 | 90 | 2.324 | +0.19 | +0.030 | +0.076 |
| +0.00 | +0.010 | +0.040 | ||||||||
| Flanged Type in Steel | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stock No | d | D | z | b | A | L | B | C | F | H | E | G | Tolerances | Sm.F | Other chamfers |
||
| Steel | (h8) | (0-0.2) | (+/- 0.05) | (H7) | (h8) | (+/-0.1) | (0-0.1) | (+/-0.5) | D | d | b | ||||||
| C45 | (H11) | (H7) | (D9) | ||||||||||||||
| SPHF14X11X3 | 11 | 14 | 6 | 3 | 42 | 35 | 28 | 20 | 20 | 3 | 8 | 4.5 | +0.11 | +0.018 | 0.045 | 2×45° | 0.5×45° |
| +0.00 | +0.000 | +0.020 | |||||||||||||||
| SPHF16X13X3.5 | 13 | 16 | 6 | 3.5 | 50 | 40 | 36 | 22 | 25 | 3 | 8 | 4.5 | +0.11 | +0.018 | +0.060 | 2×45° | 0.5×45° |
| +0.00 | +0.000 | +0.030 | |||||||||||||||
| SPHF20X16X4 | 16 | 20 | 6 | 4 | 52 | 40 | 38 | 25 | 28 | 3 | 10 | 5.5 | +0.13 | +0.018 | +0.060 | 2.5×45° | 1×45° |
| +0.00 | +0.000 | +0.030 | |||||||||||||||
| SPHF22X18X5 | 18 | 22 | 6 | 5 | 54 | 45 | 40 | 30 | 30 | 3.5 | 10 | 5.5 | +0.13 | +0.018 | +0.060 | 2.5×45° | 1×45° |
| +0.00 | +0.000 | +0.030 | |||||||||||||||
| SPHF25X21X5 | 21 | 25 | 6 | 5 | 62 | 50 | 48 | 35 | 34 | 3.5 | 10 | 6.6 | +0.13 | +0.021 | +0.060 | 2.5×45° | 1×45° |
| +0.00 | +0.000 | +0.030 | |||||||||||||||
| SPHF28X23X6 | 23 | 28 | 6 | 6 | 64 | 55 | 50 | 36 | 36 | 3.5 | 10 | 6.6 | +0.13 | +0.021 | +0.060 | 3×45° | 1×45° |
| +0.00 | +0.000 | +0.030 | |||||||||||||||
| SPHF32X26X6 | 26 | 32 | 6 | 6 | 70 | 60 | 56 | 40 | 42 | 3.5 | 10 | 6.6 | +0.16 | +0.021 | +0.060 | 3.5×45° | 1×45° |
| +0.00 | +0.000 | +0.030 | |||||||||||||||
| SPHF38X32X6 | 32 | 38 | 8 | 6 | 82 | 60 | 65 | 50 | 50 | 3.5 | 12 | 9 | +0.16 | +0.025 | +0.060 | 3.5×45° | 1×45° |
| +0.00 | +0.000 | +0.030 | |||||||||||||||
| SPHF42X36X7 | 36 | 42 | 8 | 7 | 90 | 80 | 70 | 52 | 52 | 4 | 16 | 9 | +0.16 | +0.025 | +0.076 | 3.5×45° | 1.5×45° |
| +0.00 | +0.000 | +0.040 | |||||||||||||||
| SPHF48X42X8 | 42 | 48 | 8 | 8 | 95 | 80 | 75 | 60 | 60 | 4 | 16 | 11 | +0.16 | +0.025 | +0.076 | 3.5×45° | 1.5×45° |
| +0.00 | +0.000 | +0.040 | |||||||||||||||
| SPHF54X48X9 | 48 | 54 | 8 | 9 | 100 | 100 | 80 | 65 | 65 | 4 | 16 | 11 | +0.19 | +0.025 | +0.076 | 4.5×45° | 1.5×45° |
| +0.00 | +0.000 | +0.040 | |||||||||||||||
