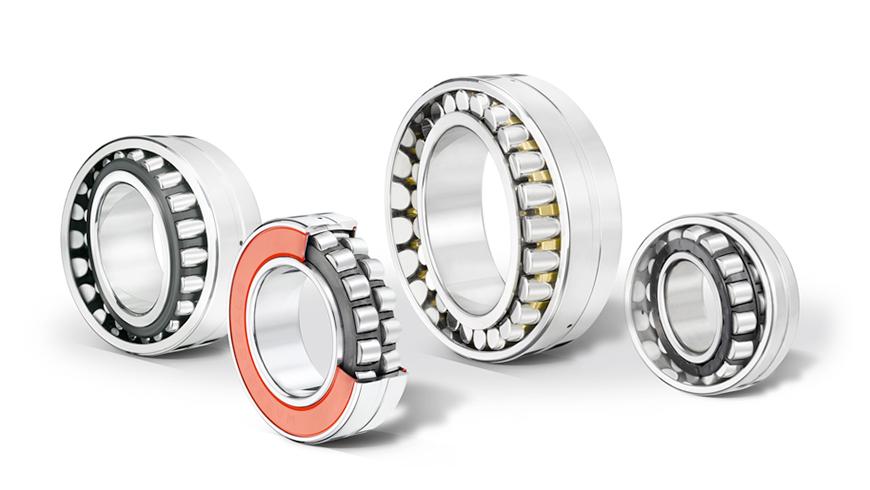

Spherical Roller Bearings 2
- Open
- Normal clearance
- Parallel bore
- Tapered bore
| Part No. | Dimensions (mm) | Seals | Clearance | Bore | Adapter Sleeve Ref. | ||
|---|---|---|---|---|---|---|---|
| Inside Ø | Outside Ø | Width | |||||
| 22205EAKW33 | 25 | 52 | 18 | Open | Normal | Tapered bore | H305 |
| 22205EAW33 | 25 | 52 | 18 | Open | Normal | Parallel bore | |
| 22206EAKW33 | 30 | 62 | 20 | Open | Normal | Tapered bore | H306 |
| 22206EAW33 | 30 | 62 | 20 | Open | Normal | Parallel bore | |
| 22207EAKW33 | 35 | 72 | 23 | Open | Normal | Tapered bore | H307 |
| 22207EAW33 | 35 | 72 | 23 | Open | Normal | Parallel bore | |
| 22208EAKW33 | 40 | 80 | 23 | Open | Normal | Tapered bore | H308 |
| 22208EAW33 | 40 | 80 | 23 | Open | Normal | Parallel bore | |
| 22209EAKW33 | 45 | 85 | 23 | Open | Normal | Tapered bore | H309 |
| 22209EAW33 | 45 | 85 | 23 | Open | Normal | Parallel bore | |
| 22210EAKW33 | 50 | 90 | 23 | Open | Normal | Tapered bore | H310 |
| 22210EAW33 | 50 | 90 | 23 | Open | Normal | Parallel bore | |
| 22211EAKW33 | 55 | 100 | 25 | Open | Normal | Tapered bore | H311 |
| 22211EAW33 | 55 | 100 | 25 | Open | Normal | Parallel bore | |
| 22212EAKW33 | 60 | 110 | 28 | Open | Normal | Tapered bore | H312 |
| 22212EAW33 | 60 | 110 | 28 | Open | Normal | Parallel bore | |
| 22218EAKW33 | 90 | 160 | 40 | Open | Normal | Tapered bore | H318 |
| 22218EAW33 | 90 | 160 | 40 | Open | Normal | Parallel bore | |
| 22220EAKW33 | 100 | 180 | 46 | Open | Normal | Tapered bore | H320 |
| 22220EAW33 | 100 | 180 | 46 | Open | Normal | Parallel bore | |
| 22222EAW33 | 110 | 200 | 53 | Open | Normal | Parallel bore | |
| 22222EAKW33 | 110 | 200 | 53 | Open | Normal | Tapered bore | H322 |
