NTN-SNR linear guides are high-quality precision products.They combine customer-focused product development and
high quality. They offer the customer a wide product range for various applications in all areas of industry.

Standard Linear Guides

  • Characteristics
  • Arrangement of the race ways at a 45° angle, which results in equal load ratings in all main directions
  • Low system friction with a maximum friction coefficient, μ of 0.003 due to circular arc grooves
  • High tolerance compensation and error compensation capability due to DF-arrangement of the race ways
  • Multitude of lubrication connections can be mounted on all sides of the carriage
  • Flanged carriages allows screw connection from the top and the bottom
  • Double-lip seals for optimal protection of the carriage from liquid and solid foreign particles
  • Range of sealing options for special applications
  • Linear guides with ball chain and conventional types on one rail
  • Dimensions according to DIN 645-1 and DIN 645-2.

Standard Linear Guides with Ball Chains

  • Low noise level
  • Very quiet running due to additional spacer ball at the chain ends
  • Low heat generation
  • Velocity of up to 5 m/s
  • Accelerations of up to 50 m/s2
  • Long-term zero maintenance
  • Long service life
  • Patented ball chain with integrated lubrication reservoirs
  • NTN-SNR miniature guides
  • Compact design
  • Available in narrow and wide rail versions
  • With ball chain and in conventional type available

Miniature Guides

  • Profile rail and carriage made of corrosion-resistant material
  • Available in narrow and wide rail versions
  • With ball chain and in conventional type available

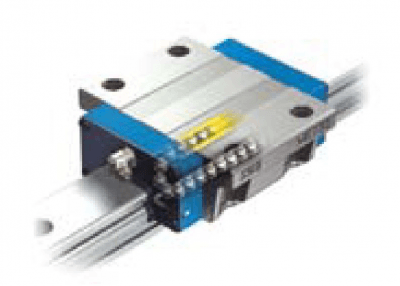

NTN-SNR Rails and Carriages
