Armorvin Cristal FDA Hose (913045)
| ARMORVIN SERIES |
 |

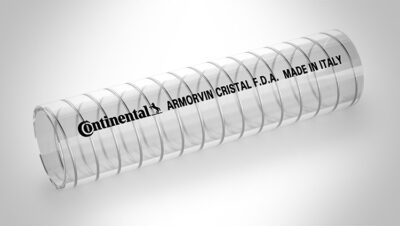

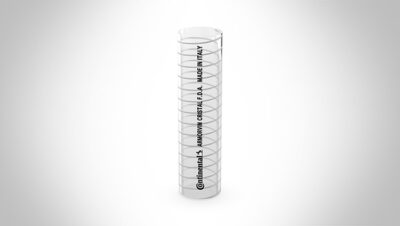

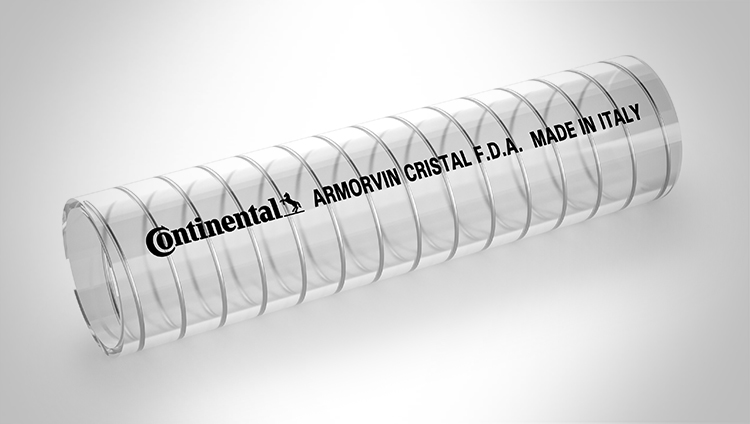

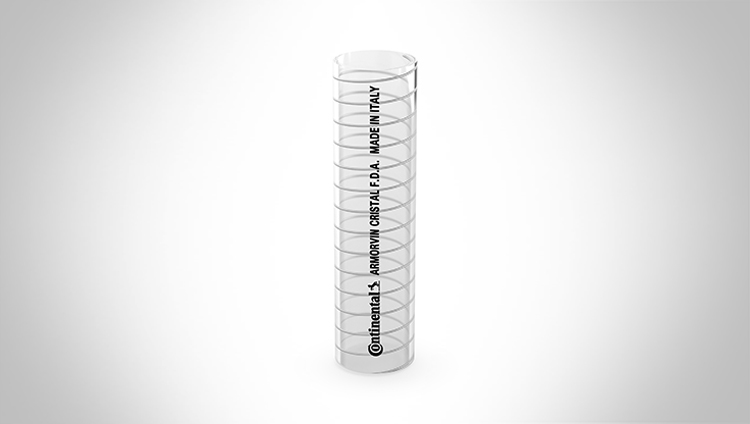

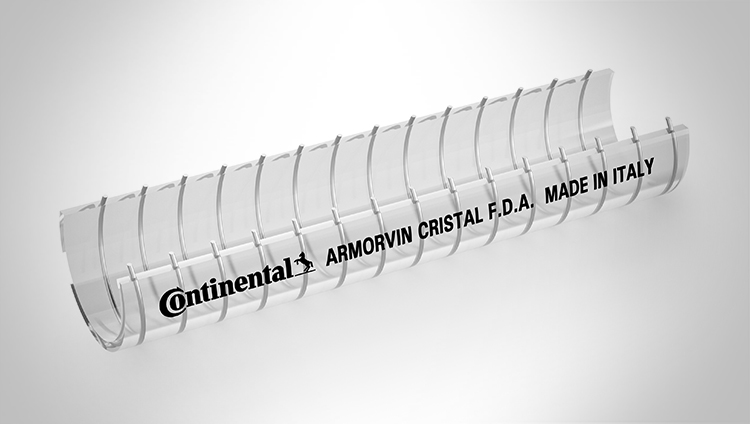

Armorvin Cristal FDA Hose (913045) is a PVC hose with embedded galvanized steel spiral with reduced pitch for suction and delivery of liquids and air in the pneumatic, plumbing, hydraulic and chemical industries.
Details
| Features | Value | |
 |
Smooth surface | ***** |
 |
Flexibility | **** |
 |
Abrasion resistance | *** |
 |
Temperature range | -5 °C 65 °C |
 |
Chemical Resistance | Contact TransDev |
 |
Crushing resistance | *** |
 |
For food | EU according to Declaration of Conformity. FDA according to Declaration of Conformity. Contact TransDev. |
Specification
Ø Nominal |
Ø Nominal |
Ø i.d. |
Ø o.d. |
Vacuum
|
Working
|
Bursting
|
Bending radius |
Total thickness |
Ø Steel wire |
Spiral pitch |
Spiral direction |
Weight |
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | m/H2O | bar | bar | mm | mm | mm | mm | right/left | g/m | m |
| 6.4 | 1/4 | 6.4 | 11.5 | 9.5 | 14 | 42 | 26 | 2.6 | 0.55 | 3 | right | 105 | 30.5 |
| 9.5 | 3/8 | 9.5 | 15.5 | 9.5 | 12 | 36 | 38 | 3 | 0.7 | 4 | right | 170 | 30.5 |
| 12.7 | 1/2 | 12.7 | 19 | 9.5 | 10 | 30 | 50 | 3.2 | 0.8 | 4.5 | right | 230 | 30.5 |
| 15.9 | 5/8 | 15.9 | 23 | 9.5 | 7 | 21 | 63 | 3.6 | 0.8 | 5.2 | right | 300 | 30.5 |
| 19.1 | 3/4 | 19.1 | 26 | 9.5 | 7 | 21 | 76 | 3.5 | 0.8 | 5.7 | right | 350 | 30.5 |
| 25 | 1 | 25 | 33.5 | 9.5 | 6 | 18 | 100 | 4.3 | 1.4 | 9 | right | 560 | 30.5 |
| 32 | 1 1/4 | 32 | 41.5 | 9.5 | 6 | 18 | 120 | 4.8 | 1.4 | 11 | right | 730 | 30.5 |
| 38 | 1 1/2 | 38 | 49 | 9.5 | 6 | 18 | 150 | 5.5 | 1.6 | 12 | right | 1000 | 30.5 |
| 50.5 | 2 | 50.5 | 61 | 9.5 | 5 | 15 | 200 | 5.3 | 1.6 | 12 | right | 1205 | 30.5 |
