Superflex PU R Din 4102-B1 Hose (913006)
| SUPERFLEX SERIES |
 |

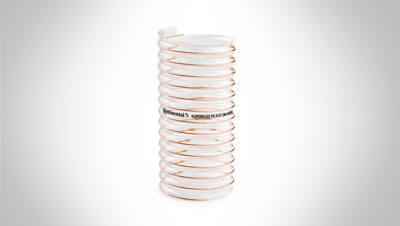

Superflex PU R Din 4102-B1 Hose (913006) POLYURETHANE (PU) hose with copper-plated steel spiral, for suction and ducting of dust, chips and abrasive material. Self extinguishing according to DIN 4102 – B1.
Details
| Features | Value | |
 |
Smooth surface | *** |
 |
Flexibility | ***** |
 |
Abrasion resistance | ***** |
 |
Temperature range | -40 °C 90 °C |
 |
Chemical resistance | Contact TransDev |
 |
Crushing resistance | *** |
 |
Ozone resistance | ***** |
 |
Microorganisms resistance | ***** |
 |
Flame retardant | According to DIN -4102 IN B1 class |
 |
Hydrolysis resistance | Resistant to hydrolysis in 60 °C warm water |
 |
Phtalate free | ***** |
Specification
Ø Nominal |
Ø Nominal |
Ø i.d. |
Ø o.d. |
Vacuum
|
Bending
|
Wall
|
Ø Steel
|
Spiral
|
Spiral
|
Weight
|
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | m/H2O | mm | mm | mm | mm | g/m | m | |
| 35 | 36 | 40 | 5 | 35 | 0.5 | 1 | 10 | left | 160 | 30 | |
| 38 | 1 1/2 | 39 | 43 | 4.8 | 38 | 0.5 | 1 | 10 | left | 180 | 30 |
| 40 | 41 | 45 | 4.5 | 40 | 0.5 | 1 | 10 | left | 180 | 30 | |
| 50 | 51 | 55 | 3.5 | 50 | 0.55 | 1.2 | 12 | left | 260 | 30 | |
| 60 | 61 | 65 | 3 | 60 | 0.55 | 1.2 | 12 | left | 330 | 30 | |
| 63 | 2 1/2 | 64 | 68 | 2.5 | 63 | 0.55 | 1.2 | 12 | left | 350 | 30 |
| 65 | 66 | 70 | 2.5 | 65 | 0.55 | 1.2 | 12 | left | 370 | 30 | |
| 70 | 71 | 77 | 2.5 | 70 | 0.6 | 1.4 | 14 | left | 420 | 30 | |
| 75 | 76 | 82 | 2 | 75 | 0.6 | 1.4 | 14 | left | 440 | 30 | |
| 80 | 81 | 87 | 2 | 80 | 0.6 | 1.4 | 14 | left | 480 | 30 | |
| 90 | 3 1/2 | 91 | 97 | 2 | 90 | 0.6 | 1.4 | 14 | left | 520 | 30 |
| 100 | 101 | 107 | 1.5 | 100 | 0.65 | 1.6 | 16 | left | 660 | 30 | |
| 110 | 111 | 117 | 1.5 | 110 | 0.65 | 1.6 | 16 | left | 720 | 30 | |
| 120 | 121 | 127 | 1.5 | 120 | 0.65 | 1.6 | 16 | left | 780 | 30 | |
| 125 | 126 | 132 | 1.5 | 125 | 0.65 | 1.6 | 16 | left | 800 | 30 | |
| 130 | 131 | 137 | 1.5 | 130 | 0.65 | 1.6 | 16 | left | 840 | 30 | |
| 140 | 141 | 147 | 1.5 | 140 | 0.65 | 1.6 | 16 | left | 900 | 30 | |
| 150 | 151 | 157 | 1 | 150 | 0.7 | 1.8 | 18 | left | 1100 | 30 | |
| 160 | 161 | 167 | 1 ** | 160 | 0.7 | 1.8 | 18 | left | 1160 | 30 | |
| 170 | 171 | 177 | 1 ** | 170 | 0.7 | 1.8 | 18 | left | 1240 | 30 | |
| 180 | 181 | 187 | 1 ** | 180 | 0.7 | 1.8 | 18 | left | 1300 | 30 | |
| 200 | 201 | 207 | 1 ** | 200 | 0.7 | 1.8 | 18 | left | 1440 | 30 | |
| 220 | 221 | 227 | 0.5 ** | 220 | 0.7 | 1.8 | 18 | left | 1580 | 15 | |
| 227 | 228 | 235 | 0.5 ** | 227 | 0.7 | 1.8 | 18 | left | 1700 | 15 | |
| 250 | 252 | 259 | 0.5 ** | 250 | 0.8 | 2 | 22 | left | 1880 | 15 | |
| 280 | 282 | 289 | 0.5 ** | 280 | 0.8 | 2 | 22 | left | 2100 | 15 | |
| 300 | 302 | 309 | 0.4 ** | 300 | 0.8 | 2 | 22 | left | 2250 | 15 | |
| 325 | 327 | 334 | 0.4 ** | 325 | 0.8 | 2 | 22 | left | 2450 | 10 | |
| 350 | 352 | 359 | 0.4 ** | 350 | 0.8 | 2 | 22 | left | 2600 | 10 | |
| 400 | 402 | 409 | 0.4 ** | 400 | 0.8 | 2 | 22 | left | 3000 |
All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
