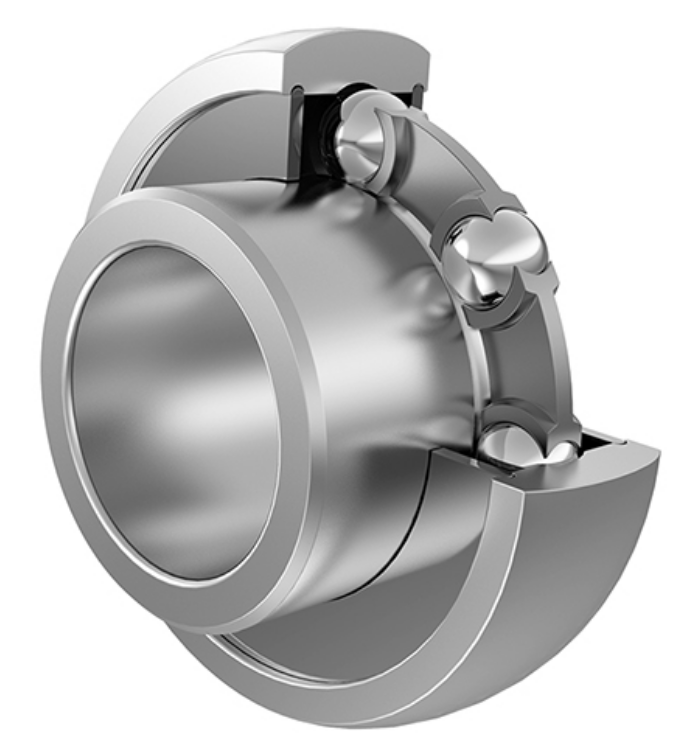

SUC 200 Series Stainless Steel Bearing Housing Inserts

SUC 200 Series Stainless Steel Bearing Housing Inserts

Stainless Steel Bearing Housing Inserts

SUC200 Series

  • Oil lubrication
  • Grease lubrication
  • Complete with Mobil FM222
  • Excellent water resistance
  • Rust protection
  • Load zones remain oiled under high shear conditions
  • Chemical solvent resistant
  • Suitable for low and high temperatures

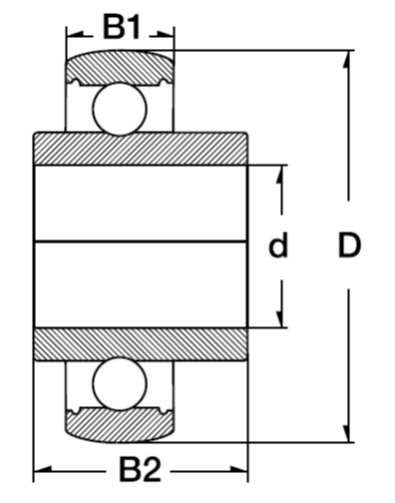

Part No. Dimensions in mm Load Rating (kN) OR Material IR Material Ball Material
d D B1 B2 Dynamic Static
SUC204 20 47 17 31 10.00 6.30 AISI420 AISI420 AISI420
SUC205 25 52 17 34.1 11.00 7.10 AISI420 AISI420 AISI420
SUC206 30 62 19 38.1 15.20 10.20 AISI420 AISI420 AISI420
SUC207 35 72 20 42.9 20.10 18.10 AISI420 AISI420 AISI420
SUC208 40 80 21 49.2 23.00 18.10 AISI420 AISI420 AISI420
SUC209 45 85 22 49.2 25.60 18.10 AISI420 AISI420 AISI420
SUC210 50 90 23 51.6 27.50 20.20 AISI420 AISI420 AISI420
