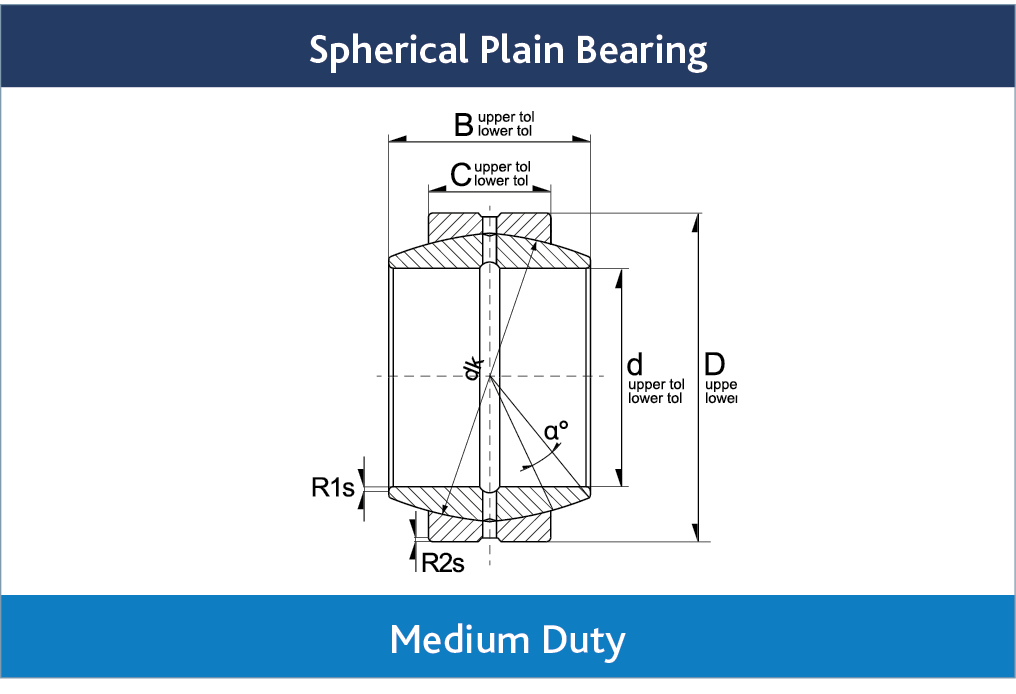

Spherical Plain Bearings Medium Duty
- Spherical Plain Bearing
- Medium duty
- Sealed on both sides (2RS)
| Part No. | Dimensions | Mounting Dimensions | Load Rating | Weight (g) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | C | Da | dk | da | C, dyn.N | C, stat.N | ||
| GE6-FO | 6.0 | 16.0 | 9.0 | 5.0 | 12.5 | 13.0 | 9.4 | 4950 | 24750 | 9 |
| GE8-FO | 8.0 | 19.0 | 11.0 | 6.0 | 15.5 | 16.0 | 11.6 | 7344 | 36720 | 15 |
| GE10-FO | 10.0 | 22.0 | 12.0 | 7.0 | 17.5 | 18.0 | 13.4 | 9720 | 48600 | 21 |
| GE12-FO | 12.0 | 26.0 | 15.0 | 9.0 | 21.0 | 22.0 | 16.1 | 15210 | 76230 | 37 |
| GE15-FO-2RS | 15.0 | 30.0 | 16.0 | 10.0 | 24.0 | 25.0 | 19.2 | 19170 | 95400 | 47 |
| GE17-FO-2RS | 17.0 | 35.0 | 20.0 | 12.0 | 27.5 | 29.0 | 21.0 | 26640 | 133200 | 79 |
| GE20-FO-2RS | 20.0 | 42.0 | 25.0 | 16.0 | 33.0 | 35.5 | 25.2 | 43470 | 216900 | 150 |
| GE25-FO-2RS | 25.0 | 47.0 | 28.0 | 18.0 | 38.0 | 40.7 | 29.5 | 56070 | 279900 | 200 |
| GE30-FO-2RS | 30.0 | 55.0 | 32.0 | 20.0 | 44.5 | 47.0 | 34.4 | 71910 | 360000 | 300 |
| GE35-FO-2RS | 35.0 | 62.0 | 35.0 | 22.0 | 51.0 | 53.0 | 39.8 | 89190 | 446400 | 400 |
| GE40-FO-2RS | 40.0 | 68.0 | 40.0 | 25.0 | 57.0 | 60.0 | 44.7 | 115200 | 575100 | 530 |
| GE45-FO-2RS | 45.0 | 75.0 | 43.0 | 28.0 | 63.0 | 66.0 | 50.1 | 141300 | 706500 | 690 |
| GE50-FO-2RS | 50.0 | 90.0 | 56.0 | 36.0 | 75.0 | 80.0 | 57.1 | 220500 | 1098000 | 1410 |
| GE60-FO-2RS | 60.0 | 105.0 | 63.0 | 40.0 | 87.0 | 92.0 | 67.0 | 281700 | 1404000 | 2100 |
| GE70-FO-2RS | 70.0 | 120.0 | 70.0 | 45.0 | 99.0 | 105.0 | 78.3 | 361800 | 1809000 | 3000 |
| GE80-FO-2RS | 80.0 | 130.0 | 75.0 | 50.0 | 108.0 | 115.0 | 87.2 | 440100 | 2196000 | 3600 |
| GE90-FO-2RS | 90.0 | 150.0 | 85.0 | 55.0 | 123.0 | 130.0 | 98.4 | 547200 | 2736000 | 5500 |
| GE100-FO-2RS | 100.0 | 160.0 | 85.0 | 55.0 | 134.0 | 140.0 | 111.2 | 589500 | 2952000 | 6000 |
| GE110-FO-2RS | 110.0 | 180.0 | 100.0 | 70.0 | 150.0 | 160.0 | 124.9 | 856800 | 4284000 | 9700 |
| GE120-FO-2RS | 120.0 | 210.0 | 115.0 | 70.0 | 173.0 | 180.0 | 138.5 | 963000 | 4824000 | 15100 |
