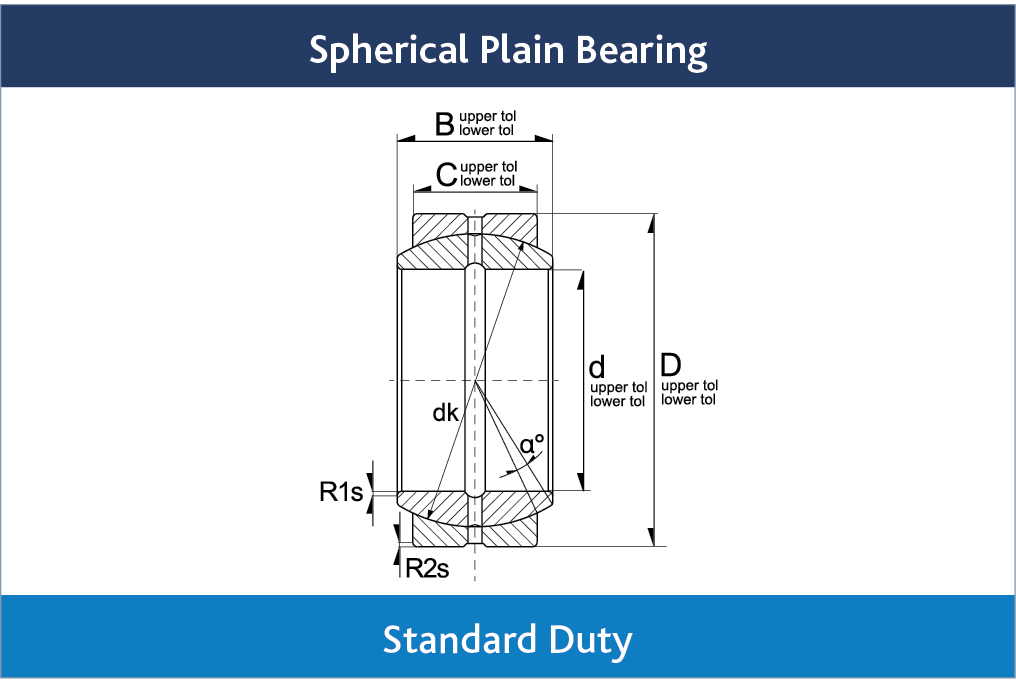

Spherical Plain Bearings Standard Duty
- Spherical Plain Bearing
- Standard duty
- Sealed on both sides (2RS)
| Part No. | Dimensions | Mounting Dimensions | Load Rating | Weight (g) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | C | Da | dk | da | C, dyn.N | C, stat.N | ||
| GE6-DO | 6.0 | 14.0 | 6.0 | 4.0 | 9.6 | 10.0 | 8.0 | 3060 | 15300 | 5 |
| GE8-DO | 8.0 | 16.0 | 8.0 | 5.0 | 12.5 | 13.0 | 10.2 | 5031 | 25200 | 7 |
| GE10-DO | 10.0 | 19.0 | 9.0 | 6.0 | 15.5 | 16.0 | 13.2 | 7344 | 36720 | 12 |
| GE12-DO | 12.0 | 22.0 | 10.0 | 7.0 | 17.5 | 18.0 | 14.9 | 9720 | 48600 | 17 |
| GE15-DO | 15.0 | 26.0 | 12.0 | 9.0 | 21.0 | 22.0 | 18.4 | 15210 | 76230 | 27 |
| GE16-DO | 16.0 | 30.0 | 14.0 | 10.0 | 24.0 | 25.0 | 20.7 | 19170 | 95400 | 34 |
| GE17-DO-2RS | 17.0 | 30.0 | 14.0 | 10.0 | 24.0 | 25.0 | 20.7 | 19170 | 95400 | 41 |
| GE20-DO-2RS | 20.0 | 35.0 | 16.0 | 12.0 | 27.5 | 29.0 | 24.2 | 26640 | 133200 | 65 |
| GE25-DO-2RS | 25.0 | 42.0 | 20.0 | 16.0 | 33.0 | 35.5 | 29.3 | 43470 | 216900 | 120 |
| GE30-DO-2RS | 30.0 | 47.0 | 22.0 | 18.0 | 38.0 | 40.7 | 34.2 | 56070 | 279900 | 150 |
| GE35-DO-2RS | 35.0 | 55.0 | 25.0 | 20.0 | 44.5 | 47.0 | 39.8 | 71910 | 360000 | 230 |
| GE40-DO-2RS | 40.0 | 62.0 | 28.0 | 22.0 | 51.0 | 53.0 | 45.0 | 89190 | 446400 | 320 |
| GE45-DO-2RS | 45.0 | 68.0 | 32.0 | 25.0 | 57.0 | 60.0 | 50.8 | 115200 | 575100 | 420 |
| GE50-DO-2RS | 50.0 | 75.0 | 35.0 | 28.0 | 63.0 | 66.0 | 56.0 | 141300 | 706500 | 560 |
| GE60-DO-2RS | 60.0 | 90.0 | 44.0 | 36.0 | 75.0 | 80.0 | 66.8 | 220500 | 1098000 | 1030 |
| GE70-DO-2RS | 70.0 | 105.0 | 49.0 | 40.0 | 87.0 | 92.0 | 77.9 | 281700 | 1404000 | 1560 |
| GE80-DO-2RS | 80.0 | 120.0 | 55.0 | 45.0 | 99.0 | 105.0 | 89.4 | 361800 | 1809000 | 2290 |
| GE90-DO-2RS | 90.0 | 130.0 | 60.0 | 50.0 | 108.0 | 115.0 | 98.1 | 440100 | 2196000 | 2760 |
| GE100-DO-2RS | 100.0 | 150.0 | 70.0 | 55.0 | 123.0 | 130.0 | 109.5 | 547200 | 2736000 | 4420 |
| GE110-DO-2RS | 110.0 | 160.0 | 70.0 | 55.0 | 134.0 | 140.0 | 121.2 | 589500 | 2952000 | 4800 |
| GE120-DO-2RS | 120.0 | 180.0 | 85.0 | 70.0 | 150.0 | 160.0 | 135.6 | 856800 | 4284000 | 8060 |
| GE140-DO-2RS | 140.0 | 210.0 | 90.0 | 70.0 | 173.0 | 180.0 | 155.9 | 963000 | 4824000 | 11200 |
| GE160-DO-2RS | 160.0 | 230.0 | 105.0 | 80.0 | 191.0 | 200.0 | 170.2 | 1224000 | 6120000 | 14200 |
| GE180-DO-2RS | 180.0 | 260.0 | 105.0 | 80.0 | 219.0 | 225.0 | 199.0 | 1377000 | 6885000 | 18600 |
| GE200-DO-2RS | 200.0 | 290.0 | 130.0 | 100.0 | 239.0 | 250.0 | 213.5 | 1917000 | 9540000 | 28500 |
