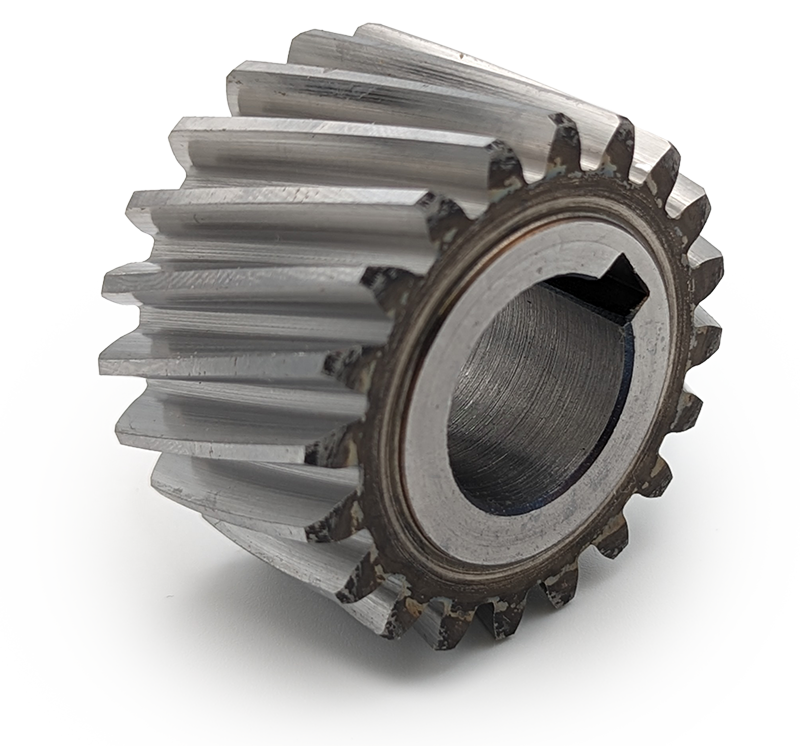

Metric Hardened & Ground Helical Pinions 1.5 – 6 MOD
- Helical gears with hardened and ground teeth
- Helix angle left hand 19° 31′ 42″ helix angle
- Tooth quality 6h25
- Material Steel C45 E
- Pressure Angle 20°
- Gear teeth hardened to 55-58 HRC (Bore Soft)
|
Part No
|
Module
|
No. teeth
|
Pitch dia.
dp
|
Bore H6
|
Hub
(both sides)
dm
|
Dia.
de
|
Face width
F
|
Overall
length A
|
Hub length
Lm
|
U | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SHL15/20B
|
1.5 | 20 |
31.83
|
20 | 25 |
34.83
|
28 | 30 | 1 | 6 |
22.80
|
|
SHL20/20B
|
2 | 20 |
42.44
|
20 | 30 |
46.44
|
28 | 30 | 1 | 6 |
22.80
|
|
SHL20/30B
|
2 | 30 |
63.66
|
25 | 36 |
67.66
|
28 | 30 | 1 | 8 |
28.30
|
|
SHL25/24B
|
2.5 | 24 |
63.66
|
25 | 36 |
68.66
|
28 | 30 | 1 | 8 |
28.30
|
|
SHL30/20B
|
3 | 20 |
63.66
|
20 | 30 |
69.66
|
28 | 30 | 1 | 6 |
22.80
|
|
SHL30/40B
|
3 | 40 |
127.32
|
40 | 62 |
133.32
|
28 | 30 | 1 | 12 |
43.30
|
|
SHL40/20B
|
4 | 20 |
84.88
|
35 | 55 |
92.88
|
40 | 50 | 5 | 10 |
38.30
|
|
SHL40/25B
|
4 | 25 |
106.10
|
35 | 55 |
114.10
|
40 | 50 | 5 | 10 |
38.30
|
|
SHL50/20B
|
5 | 20 |
106.10
|
45 | 68 |
116.10
|
50 | 60 | 5 | 14 |
48.30
|
|
SHL60/20B
|
6 | 20 |
127.32
|
55 | 80 |
139.32
|
60 | 70 | 5 | 16 |
59.30
|
Please note: All dimensions subject to change. If a dimension is critical to your application please contact our Sales Department for confirmation.
For special or reworked pinions please contact our Manufacturing Department for a quotation.
