Superflex Calor Hose (913001)
| SUPERFLEX SERIES |
 |

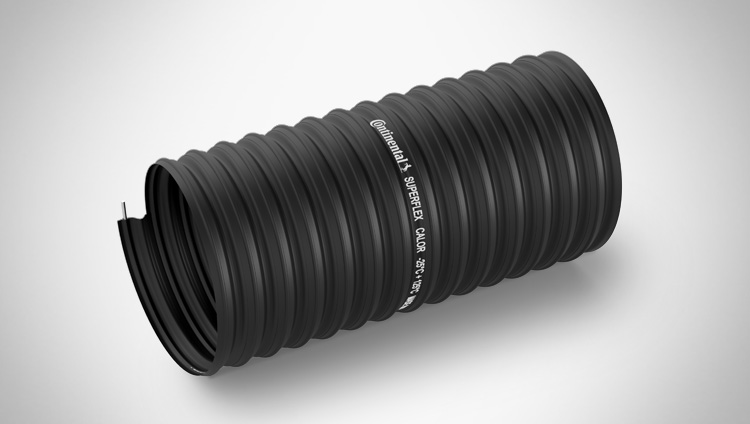

Superflex Calor Hose (913001) is a rubber hose with galvanised steel spiral, for suction and transport of air and acid vapours.
Details
| Features | Value | |
 |
Smooth surface | *** |
 |
Flexibility | ***** |
 |
Abrasion resistance | ** |
 |
Temperature range | -25 °C 125 °C |
 |
Chemical resistance | Contact TransDev |
 |
Crushing resistance | *** |
Specification
Ø Nominal |
Ø Nominal |
Ø
|
Ø o.d. |
Vacuum
|
Bending
|
Wall
|
Ø Steel
|
Spiral
|
Spiral
|
Weight
|
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | m/H2O | mm | mm | mm | mm | g/m | m | |
| 25 | 1 | 26 | 30 | 3.5 | 25 | 0.7 | 0.8 | 8 | left | 120 | 30 |
| 30 | 31 | 35 | 3.5 | 30 | 0.7 | 0.8 | 8 | left | 140 | 30 | |
| 32 | 1 1/4 | 33 | 37 | 3.5 | 32 | 0.7 | 0.8 | 8 | left | 145 | 30 |
| 35 | 36 | 40 | 3.5 | 35 | 0.7 | 0.8 | 8 | left | 160 | 30 | |
| 38 | 1 1/2 | 39 | 44 | 3 | 38 | 0.7 | 1 | 10 | left | 180 | 30 |
| 40 | 41 | 46 | 3 | 40 | 0.7 | 1 | 10 | left | 200 | 30 | |
| 45 | 1 3/4 | 46 | 51 | 3 | 45 | 0.7 | 1 | 10 | left | 230 | 30 |
| 50 | 2 | 51 | 56 | 2.5 | 50 | 0.7 | 1.2 | 12 | left | 280 | 30 |
| 60 | 61 | 66 | 2.5 | 60 | 0.7 | 1.2 | 12 | left | 320 | 30 | |
| 63 | 2 1/2 | 64 | 69 | 2.5 | 63 | 0.7 | 1.2 | 12 | left | 340 | 30 |
| 65 | 66 | 71 | 2.5 | 65 | 0.7 | 1.2 | 12 | left | 360 | 30 | |
| 70 | 71 | 77 | 2 | 70 | 0.7 | 1.4 | 14 | left | 420 | 30 | |
| 75 | 76 | 82 | 2 | 75 | 0.7 | 1.4 | 14 | left | 440 | 30 | |
| 80 | 81 | 87 | 1.7 | 80 | 0.7 | 1.4 | 14 | left | 480 | 30 | |
| 85 | 86 | 92 | 1.7 | 85 | 0.7 | 1.4 | 14 | left | 500 | 30 | |
| 90 | 3 1/2 | 91 | 97 | 1.7 | 90 | 0.7 | 1.4 | 14 | left | 520 | 30 |
| 100 | 101 | 107 | 1.4 | 100 | 0.7 | 1.6 | 16 | left | 660 | 30 | |
| 110 | 111 | 117 | 1.4 | 110 | 0.7 | 1.6 | 16 | left | 720 | 30 | |
| 120 | 121 | 127 | 1.2 | 120 | 0.7 | 1.6 | 16 | left | 780 | 30 | |
| 125 | 126 | 132 | 1.2 | 125 | 0.7 | 1.6 | 16 | left | 800 | 30 | |
| 130 | 131 | 137 | 1 | 130 | 0.7 | 1.6 | 16 | left | 840 | 30 | |
| 140 | 141 | 147 | 1 | 140 | 0.7 | 1.6 | 16 | left | 900 | 30 | |
| 150 | 151 | 157 | 0.7 | 150 | 0.7 | 1.8 | 18 | left | 1100 | 30 | |
| 160 | 161 | 167 | 0.7 | 160 | 0.7 | 1.8 | 18 | left | 1160 | 30 | |
| 170 | 171 | 177 | 0.5 | 170 | 0.7 | 1.8 | 18 | left | 1240 | 30 | |
| 180 | 181 | 187 | 0.5 | 180 | 0.7 | 1.8 | 18 | left | 1300 | 30 | |
| 200 | 201 | 207 | 0.4 | 200 | 0.7 | 1.8 | 18 | left | 1440 | 30 | |
| 220 | 221 | 227 | 0.4 | 220 | 0.7 | 1.8 | 18 | left | 1600 | 15 | |
| 250 | 252 | 259 | 0.3 | 250 | 0.8 | 2 | 22 | left | 1850 | 15 | |
| 300 | 302 | 309 | 0.2 | 300 | 0.8 | 2 | 22 | left | 2300 | 15 |
All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
