Superflex PU LR Compattato Hose (912905)

Superflex PU LR Compattato Hose (912905)

SUPERFLEX SERIES

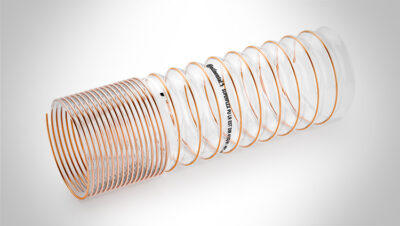

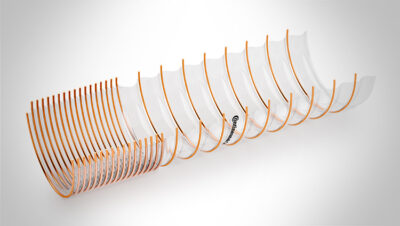

Superflex PU LR Compattato Hose (912905) is a polyurethane hose with copper-plated steel spiral, for suction and transport of dust, chips and abrasive material.

Details

Features Value
Smooth surface **
Flexibility *****
Abrasion resistance *****
Temperature range -40 °C  90 °C
Chemical resistance Contact TransDev
Crushing resistance **
Ozone resistance *****
Flame retardant According to DIN -4102 IN B1 class
ATEX According to the directions for use
O-Phtalate free *****
Phtalate free *****

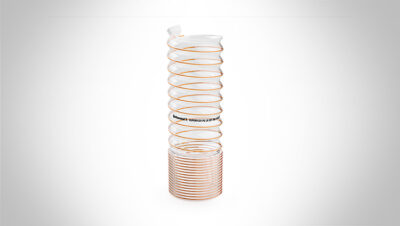

Compacted version 1:5

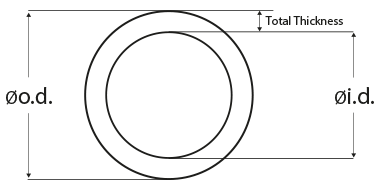

Specification

Ø Nominal
Ø Nominal
Ø i.d.
Ø o.d.
Vacuum
23 °C
Bending
radius
Wall
thickness
Ø Steel
wire
Spiral
pitch
Spiral
direction
Weight
meter
Coil length comp
mm inch mm mm m/H2O mm mm mm mm g/m m
25 26 30 0.4 5 0.35 1 9.5 left 100 6/10
30 31 35 0.3 7 0.4 1 14 left 120 6/10
35 36 40 0.28 8 0.4 1 14 left 140 6/10
40 41 45 0.25 10 0.4 1 14 left 150 6/10
45 46 50 0.23 12 0.4 1 14 left 190 6/10
50 2 51 55 0.2 13 0.4 1.2 18 left 185 6/10
55 56 60 0.18 14 0.4 1.2 18 left 200 6/10
60 61 65 0.16 15 0.4 1.2 18 left 220 6/10
63 2 1/2 64 68 0.15 16 0.4 1.2 18 left 230 6/10
70 71 75 0.14 18 0.4 1.4 18 left 330 6/10
76 3 77 81 0.1 19 0.4 1.4 18 left 350 6/10
80 81 85 0.1 20 0.4 1.4 18 left 370 6/10
90 3 1/2 91 95 0.1 22 0.4 1.4 18 left 420 6/10
100 4 102 106 0.09 20 0.4 1.6 23 left 480 6/10
110 112 116 0.09 22 0.4 1.6 23 left 520 6/10
115 117 121 0.09 23 0.4 1.6 23 left 545 6/10
120 122 126 0.09 24 0.4 1.6 23 left 550 6/10
125 5 127 131 0.08 25 0.4 1.6 23 left 590 6/10
130 132 136 0.08 26 0.4 1.6 23 left 610 6/10
140 142 143 0.08 28 0.4 1.6 23 left 660 6/10
150 6 153 158 0.06 30 0.5 1.8 30 left 700 6/10
160 163 168 0.06 32 0.5 1.8 30 left 750 6/10
170 173 178 0.06 34 0.5 1.8 30 left 780 6/10
180 183 188 0.06 36 0.5 1.8 30 left 830 6/10
200 8 203 208 0.05 40 0.5 1.8 30 left 920 6/10
220 223 228 0.05 45 0.5 1.8 30 left 1070 6/10
250 10 254 260 0.04 50 0.6 2 36 left 1250 6/10
280 284 290 0.04 55 0.6 2 36 left 1350 6/10
300 12 304 310 0.03 60 0.6 2 36 left 1500 6/10
315 319 325 0.03 62 0.6 2 36 left 1150 6/10
325 329 335 0.03 65 0.6 2 36 left 1600 6/10
350 354 360 0.03 70 0.6 2 36 left 1750 6/10
400 405 412 0.02 80 0.6 2 36 left 2000 6/10
450 456 462 0.01 90 0.6 2 36 left 2300 6
500 505 512 0.01 100 0.6 2 36 left 2500 6
550 555 562 0.01 110 0.6 2 36 left 2700 6
600 605 612 0.01 120 0.6 2 36 left 3000 6

All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
