Superflex PU LR Din 4102-B1 Hose (912883)
| SUPERFLEX SERIES |
 |

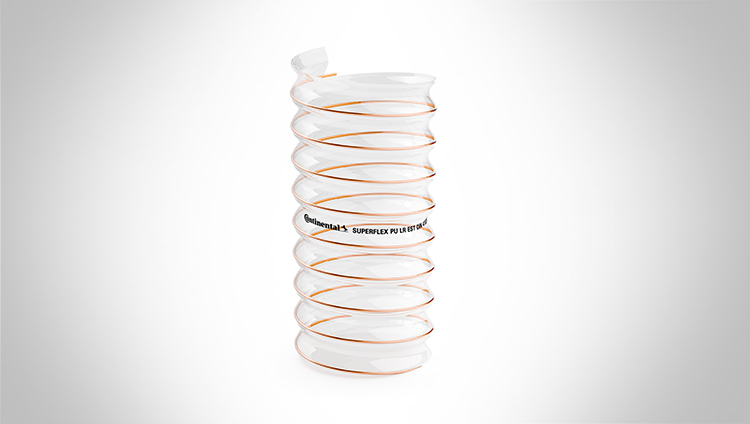

Superflex PU LR – Din 4102-B1 Hose (912883) is a polyurethane ducting, flame retardant according to Din 4102-B1 reinforced with copper plated steel spiral, for suction and transport of dust, wood chips and other abrasive materials.
Details
| Features | Value | |
 |
Smooth surface | ** |
 |
Flexibility | ***** |
 |
Abrasion resistance | ***** |
 |
Temperature range | -40 °C 90 °C |
 |
Chemical resistance | Contact TransDev |
 |
Crushing resistance | ** |
 |
Ozone resistance | ***** |
 |
Flame retardant | According to DIN -4102 IN B1 class |
 |
ATEX | According to the directions for use |
 |
O-Phtalate free | ***** |
Specification
Ø Nominal |
Ø Nominal |
Ø i.d. |
Ø o.d. |
Vacuum
|
Bending
|
Wall
|
Ø Steel
|
Spiral
|
Spiral
|
Weight
|
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | m/H2O | mm | mm | mm | mm | g/m | m | |
| 20 | 21.5 | 25.5 | 0.4 | 5 | 0.35 | 1 | 9.5 | left | 100 | 30 | |
| 25 | 1 | 26 | 30 | 0.4 | 6 | 0.35 | 1 | 9.5 | left | 115 | 30 |
| 30 | 31 | 35 | 0.3 | 7 | 0.35 | 1 | 14 | left | 120 | 30 | |
| 32 | 32.5 | 36.5 | 0.28 | 8 | 0.35 | 1 | 14 | left | 125 | 30 | |
| 35 | 36 | 40 | 0.28 | 8 | 0.35 | 1 | 14 | left | 140 | 30 | |
| 38 | 38.5 | 42.5 | 0.25 | 9 | 0.4 | 1 | 14 | left | 145 | 30 | |
| 40 | 41 | 45 | 0.25 | 10 | 0.4 | 1 | 14 | left | 150 | 30 | |
| 45 | 1 3/4 | 46 | 50 | 0.23 | 12 | 0.4 | 1 | 14 | left | 190 | 30 |
| 50 | 2 | 51 | 55 | 0.2 | 13 | 0.4 | 1.2 | 18 | left | 185 | 30 |
| 55 | 56 | 60 | 0.18 | 14 | 0.4 | 1.2 | 18 | left | 200 | 30 | |
| 60 | 61 | 65 | 0.16 | 15 | 0.4 | 1.2 | 18 | left | 220 | 30 | |
| 63 | 2 1/2 | 64 | 68 | 0.15 | 16 | 0.4 | 1.2 | 18 | left | 230 | 30 |
| 70 | 71 | 75 | 0.14 | 18 | 0.4 | 1.4 | 18 | left | 330 | 30 | |
| 76 | 3 | 77 | 81 | 0.1 | 19 | 0.4 | 1.4 | 18 | left | 350 | 30 |
| 80 | 81 | 85 | 0.1 | 20 | 0.4 | 1.4 | 18 | left | 370 | 30 | |
| 90 | 3 1/2 | 91 | 95 | 0.1 | 22 | 0.4 | 1.4 | 18 | left | 420 | 30 |
| 100 | 2 | 102 | 106 | 0.09 | 20 | 0.4 | 1.6 | 23 | left | 480 | 30 |
| 110 | 112 | 116 | 0.09 | 22 | 0.4 | 1.6 | 23 | left | 520 | 30 | |
| 115 | 117 | 121 | 0.09 | 23 | 0.4 | 1.6 | 23 | left | 545 | 30 | |
| 120 | 122 | 126 | 0.09 | 24 | 0.4 | 1.6 | 23 | left | 550 | 30 | |
| 125 | 5 | 127 | 131 | 0.08 | 25 | 0.4 | 1.6 | 23 | left | 590 | 30 |
| 130 | 132 | 136 | 0.08 | 26 | 0.4 | 1.6 | 23 | left | 610 | 30 | |
| 140 | 142 | 146 | 0.08 | 28 | 0.4 | 1.6 | 23 | left | 660 | 30 | |
| 150 | 6 | 153 | 158 | 0.06 | 30 | 0.5 | 1.8 | 30 | left | 700 | 30 |
| 160 | 163 | 168 | 0.06 | 32 | 0.5 | 1.8 | 30 | left | 750 | 30 | |
| 170 | 173 | 178 | 0.06 | 34 | 0.5 | 1.8 | 30 | left | 780 | 30 | |
| 180 | 183 | 188 | 0.06 | 36 | 0.5 | 1.8 | 30 | left | 830 | 30 | |
| 200 | 8 | 203 | 208 | 0.05 | 40 | 0.5 | 1.8 | 30 | left | 920 | 30 |
| 220 | 223 | 228 | 0.05 | 45 | 0.5 | 1.8 | 30 | left | 1070 | 15 | |
| 250 | 10 | 254 | 260 | 0.04 | 50 | 0.6 | 2 | 36 | left | 1250 | 15 |
| 280 | 284 | 290 | 0.04 | 55 | 0.6 | 2 | 36 | left | 1350 | 10 | |
| 300 | 12 | 304 | 310 | 0.03 | 60 | 0.6 | 2 | 36 | left | 1500 | 10 |
| 315 | 319 | 325 | 0.03 | 62 | 0.6 | 2 | 36 | left | 1550 | 10 | |
| 325 | 329 | 335 | 0.03 | 65 | 0.6 | 2 | 36 | left | 1600 | 10 | |
| 350 | 14 | 354 | 360 | 0.03 | 70 | 0.6 | 2 | 36 | left | 1750 | 10 |
| 400 | 405 | 412 | 0.02 | 80 | 0.6 | 2 | 36 | left | 2000 | 10 | |
| 450 | 455 | 462 | 0.01 | 90 | 0.6 | 2 | 36 | left | 2300 | 10 | |
| 500 | 505 | 512 | 0.01 | 100 | 0.6 | 2 | 36 | left | 2500 | 10 | |
| 550 | 555 | 562 | 0.01 | 110 | 0.6 | 2 | 36 | left | 2700 | 10 | |
| 600 | 605 | 612 | 0.01 | 120 | 0.6 | 2 | 36 | left | 3000 | 10 |
All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
