Superflex PU R AS Din 4102 Hose (912870)
| SUPERFLEX SERIES |
 |

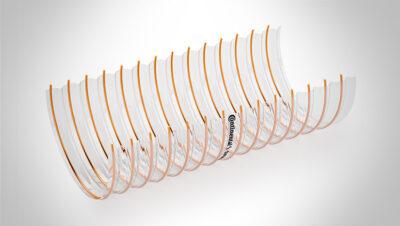

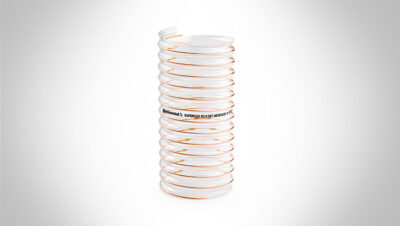

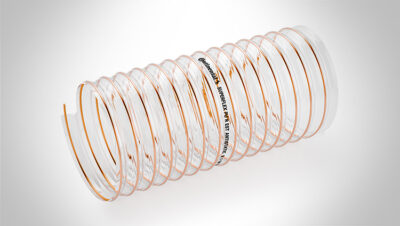

Superflex PU RAS – Din 4102 Hose (912870) is a Polyurethane permanently antistatic and self-extinguishing hose with copper-plated steel spiral sheathed in PU, for suction and transport of dust, chips and abrasive material.
Details
| Features | Value | |
 |
Smooth surface | *** |
 |
Flexibility | **** |
 |
Abrasion resistance | ***** |
 |
Temperature range | -40 °C 90 °C |
 |
Chemical resistance | Contact TransDev |
 |
Crushing resistance | *** |
 |
Ozone resistance | ***** |
 |
Flame retardant | According to DIN -4102 IN B1 class |
 |
Antistatic | Permanent ≤ 109 recommended life cycle: 2 years |
 |
ATEX | According to the directions for use |
 |
O-Phtalate free | ***** |
 |
Phtalate free | ***** |
Specification
Ø Nominal |
Ø i.d. |
Ø o.d. |
Vacuum
|
Bending
|
Wall
|
Ø Steel
|
Spiral
|
Spiral
|
Weight
|
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | m/H2O | mm | mm | mm | mm | g/m | m | |
| 38 | 39 | 45 | 5.5 | 45 | 0.55 | 1.2×1.6 | 12 | left | 230 | 30 |
| 45 | 46 | 52 | 5 | 55 | 0.55 | 1.2×1.6 | 12 | left | 250 | 30 |
| 51 | 52 | 58 | 4 | 60 | 0.55 | 1.2×1.6 | 12 | left | 290 | 30 |
| 63 | 64 | 70 | 3 | 70 | 0.55 | 1.2×1.6 | 12 | left | 340 | 30 |
| 76 | 77 | 84 | 3 | 85 | 0.65 | 1.4X1.8 | 16 | left | 470 | 30 |
| 82 | 83 | 90 | 2.5 | 90 | 0.65 | 1.4X1.8 | 16 | left | 510 | 30 |
| 90 | 91 | 110 | 2.5 | 100 | 0.65 | 1.4X1.8 | 16 | left | 530 | 30 |
| 102 | 103 | 118 | 2.5 | 110 | 0.65 | 1.4X1.8 | 16 | left | 620 | 30 |
| 110 | 111 | 118 | 2 | 120 | 0.65 | 1.4X1.8 | 16 | left | 650 | 30 |
| 115 | 116 | 123 | 1.5 | 125 | 0.70 | 1.8×2.2 | 18 | left | 800 | 30 |
| 120 | 121 | 128 | 1.5 | 130 | 0.70 | 1.8×2.2 | 18 | left | 900 | 30 |
| 127 | 128 | 135 | 1.5 | 135 | 0.70 | 1.8×2.2 | 18 | left | 950 | 30 |
| 140 | 141 | 148 | 1.5 | 150 | 0.70 | 1.8×2.2 | 18 | left | 1050 | 30 |
| 152 | 153 | 160 | 1.5 | 160 | 0.70 | 1.8×2.2 | 18 | left | 1150 | 30 |
| 160 | 161 | 168 | 0.8 | 170 | 0.70 | 1.8×2.2 | 18 | left | 1200 | 30 |
| 180 | 181 | 188 | 0.5 | 190 | 0.70 | 1.8×2.2 | 18 | left | 1350 | 30 |
| 203 | 204 | 212 | 0.35 | 220 | 0.80 | 2.0×2.5 | 22 | left | 1600 | 30 |
| 229 | 230 | 238 | 0.3 | 240 | 0.80 | 2.0×2.5 | 22 | left | 1800 | 15 |
| 254 | 255 | 263 | 0.25 | 270 | 0.80 | 2.0×2.5 | 22 | left | 2000 | 15 |
| 305 | 306 | 314 | 0.2 | 320 | 0.80 | 2.0×2.5 | 22 | left | 2400 | 15 |
| 315 | 316 | 324 | 0.2 | 330 | 0.80 | 2.0×2.5 | 22 | left | 2480 | 15 |
All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
