SYNCHROFLEX V Series Timing Belts
Polyurethane, steel reinforced, cast truly endless with (V Series) special tooth form.
These belts are OBSOLETE and should not be used for new applications. V series belts are not stocked and there may be a minimum production quantity of 3 sleeves. PQMM (Production Quantity Minimum/Multiple). Other belt widths available.
Standard |
 |
V SERIES |
CONTI SYNCHROFLEX® timing belt V Series
Available version:
- Single-sided
- With E tension member for better flexibility
- With reinforced design upon request
- With Aramid tension member upon request
- Polyurethane special materials upon request
- Antistatic, coloured, mechanical reworked

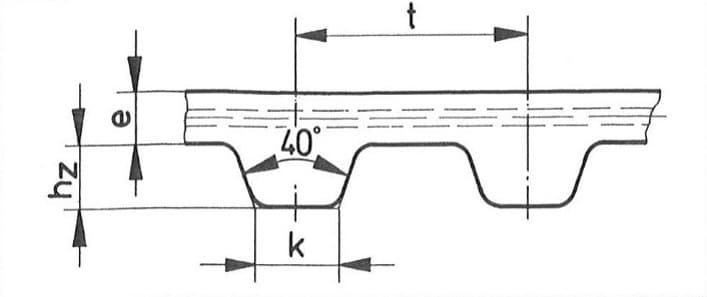

| Type | Length | Pitch | No. Teeth | Tooth Dimensions | Sleeve Width | ||
|---|---|---|---|---|---|---|---|
| k | hz | e | |||||
| mm | mm | mm | mm | mm | mm | ||
| V 510/10-F | 510.00 | 10.000 | 51 | 3.5 | 2.5 | 1.6 | 200 |
| V 513/8-F | 513.90 | 8.860 | 58 | 2.8 | 1.6 | – | 130 |
| V 532/9-F | 532.50 | 9.509 | 56 | 3.2 | 2.2 | 2.0 | 200 |
| V 537/7-F | 537.84 | 7.910 | 68 | 2.5 | 1.4 | 1.4 | 120 |
| V 546/7-F | 546.39 | 7.806 | 70 | 2.5 | 1.8 | 1.5 | 100 |
| V 620/6-F | 620.21 | 6.969 | 89 | 2.5 | 1.4 | 1.5 | 195 |
| V 628/6-F | 628.32 | 6.283 | 100 | 2.2 | 1.8 | 1.8 | 100 |
| V 686/9-F | 686.74 | 9.538 | 72 | 3.2 | 1.8 | 1.5 | 100 |
| V 728/15-F | 728.57 | 15.500 | 47 | 4.7 | 2.3 | 1.6 | 100 |
| V 758/8-FA | 757.26 | 8.508 | 89 | 3.0 | 2.5 | 2.4 | 95 |
| V 760/8-F | 759.91 | 8.538 | 89 | 3.0 | 2.5 | 1.8 | 200 |
| V 829/8-F | 828.50 | 8.630 | 96 | 3.0 | 2.5 | 2.0 | 100 |
| V 910/10-F | 910.00 | 10.000 | 91 | 3.5 | 2.5 | 1.6 | 200 |
| V 912/7-F | 911.74 | 7.473 | 122 | 2.5 | 1.6 | 1.5 | 95 |
| V 990/9-F | 990.42 | 9.525 | 104 | 3.1 | 2.2 | 1.65 | 100 |
| V1023/9-F | 1022.22 | 9.293 | 110 | 3.2 | 2.2 | 2.0 | 200 |
| V1060/4-F | 1059.68 | 4.975 | 213 | 1.8 | 1.2 | 1.0 | 200 |
| V1080/4-F | 1080.50 | 4.032 | 268 | 1.32 | 1.2 | 0.7 | 200 |
