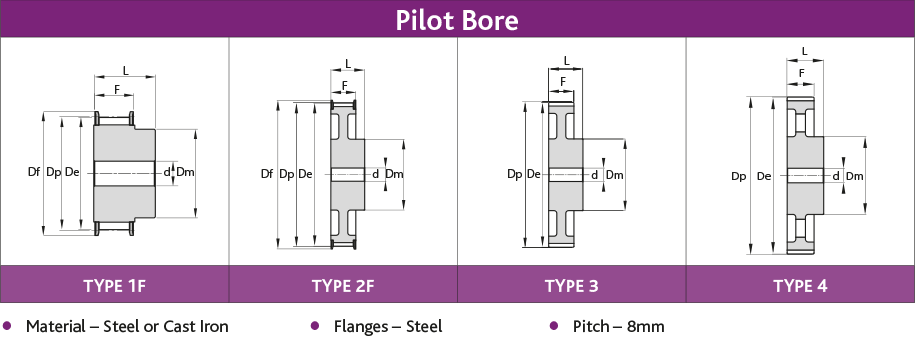

8M HTD Pilot Bore Pulleys – to suit 30mm Wide Belt
| Code | Material | No. teeth | Type | Dp | De | Df | Dm | F | L | Bore (d) | No. flanges |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P22-8M-30F | Steel | 22 | 1F | 56.02 | 54.65 | 60 | 43 | 38 | 48 | 12 | 2 |
| P24-8M-30F | Steel | 24 | 1F | 61.12 | 59.75 | 66 | 45 | 38 | 48 | 12 | 2 |
| P26-8M-30F | Steel | 26 | 1F | 66.21 | 64.85 | 70 | 48 | 38 | 48 | 12 | 2 |
| P28-8M-30F | Steel | 28 | 1F | 71.30 | 70.08 | 75 | 50 | 38 | 48 | 15 | 2 |
| P30-8M-30F | Steel | 30 | 1F | 76.39 | 75.13 | 82.5 | 55 | 38 | 48 | 15 | 2 |
| P32-8M-30F | Steel | 32 | 1F | 81.49 | 80.16 | 87 | 60 | 38 | 48 | 15 | 2 |
| P34-8M-30F | Steel | 34 | 1F | 86.58 | 85.22 | 91 | 66 | 38 | 48 | 15 | 2 |
| P36-8M-30F | Steel | 36 | 1F | 91.67 | 90.30 | 97 | 70 | 38 | 48 | 15 | 2 |
| P38-8M-30F | Steel | 38 | 1F | 96.77 | 95.39 | 102 | 75 | 38 | 48 | 15 | 2 |
| P40-8M-30F | Steel | 40 | 1F | 101.86 | 100.49 | 106 | 75 | 38 | 48 | 15 | 2 |
| P44-8M-30F | Steel | 44 | 1F | 112.05 | 110.67 | 120 | 75 | 38 | 48 | 15 | 2 |
| P48-8M-30F | Steel | 48 | 1F | 122.23 | 120.86 | 128 | 75 | 38 | 48 | 15 | 2 |
| P56-8M-30F | Steel | 56 | 2F | 142.60 | 141.23 | 150 | 90 | 38 | 48 | 15 | 2 |
| P64-8M-30F | Steel | 64 | 2F | 162.97 | 161.60 | 168 | 90 | 38 | 48 | 15 | 2 |
| P72-8M-30F | Steel | 72 | 2F | 183.35 | 181.97 | 192 | 95 | 38 | 48 | 15 | 2 |
| P80-8M-30 | Cast Iron | 80 | 3 | 203.72 | 202.35 | – | 100 | 38 | 48 | 15 | – |
| P90-8M-30 | Cast Iron | 90 | 3 | 229.18 | 227.81 | – | 100 | 38 | 48 | 15 | – |
| P112-8M-30 | Cast Iron | 112 | 4 | 285.21 | 283.83 | – | 100 | 38 | 48 | 18 | – |
| P144-8M-30 | Cast Iron | 144 | 4 | 366.69 | 365.32 | – | 100 | 38 | 48 | 20 | – |
| P168-8M-30 | Cast Iron | 168 | 4 | 427.81 | 426.44 | – | 100 | 38 | 48 | 20 | – |
| P192-8M-30 | Cast Iron | 192 | 4 | 488.92 | 487.55 | – | 100 | 38 | 48 | 20 | – |
Please note: All dimensions subject to change.If a dimension is critical to your application please contact our Sales Department for confirmation.For special or reworked pulleys please contact our Manufacturing Department for a quotation.
