Imperial Bore Double Split Shaft Collars in Steel

Imperial Bore Double Split Shaft Collars in Steel

Imperial Bore

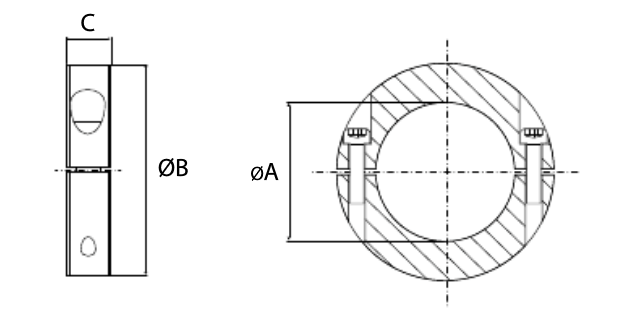

CADBI
Tolerances (inch)
Diameter A (0.250″ – 1.125″)
+ 0.003″ / 0
Diameter A (1.250″-2.750″)
+ 0.005″ / 0
Diameter A (3.000″ above)
+ 0.007″ / 0
Diameter B
+ 0.008″ / – 0.008″
Length C
+ 0.008″ / – 0.008″
  • Industry standard
  • Interchangeable
  • Common type
  • Anti-corrosion finish
Type CADBI in Steel AISI/SAE 1018 Zinc plated
Supplied with clamp bolt
Stock No Bore A (inches) Diameter B (inches) Width C (inches) Clamp Bolts
WHCADBI0.25Z 0.25 0.625 0.281 4-40 UNC
WHCADBI0.37Z 0.375 0.875 0.343 6-32 UNC
WHCADBI0.5Z 0.5 1.125 0.406 8-32 UNC
WHCADBI0.62Z 0.625 1.312 0.437 10-32 UNF
WHCADBI0.75Z 0.75 1.5 0.5 1/4-28 UNF
WHCADBI0.87Z 0.875 1.625 0.5 1/4-28 UNF
WHCADBI1.0Z 1 1.75 0.5 1/4-28 UNF
WHCADBI1.12Z 1.125 1.875 0.5 1/4-28 UNF
WHCADBI1.25Z 1.25 2.062 0.5 1/4-28 UNF
WHCADBI1.37Z 1.375 2.25 0.563 1/4-28 UNF
WHCADBI1.5Z 1.5 2.375 0.563 1/4-28 UNF
WHCADBI1.62Z 1.625 2.625 0.688 5/16-24 UNF
WHCADBI1.75Z 1.75 2.75 0.688 5/16-24 UNF
WHCADBI1.87Z 1.875 2.875 0.688 5/16-24 UNF
WHCADBI2.0Z 2 3” 0.688 5/16-24 UNF
WHCADBI2.25Z 2.25 3.25 0.75 5/16-24 UNF
WHCADBI2.5Z 2.5 3.75 0.875 3/8- 24 UNF
WHCADBI2.75Z 2.75 4 0.875 3/8- 24 UNF
WHCADBI3.0Z 3 4.25 0.875 3/8- 24 UNF
