Polipo 15 Bar Oil Hose (915133)
| BRAIDED HOSE SERIES |
 |

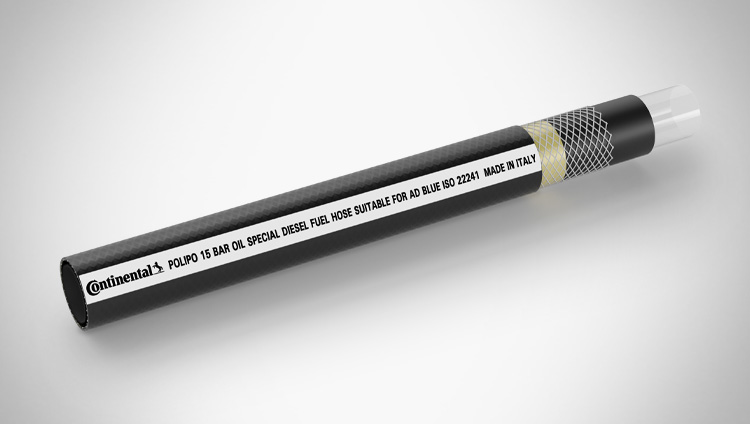

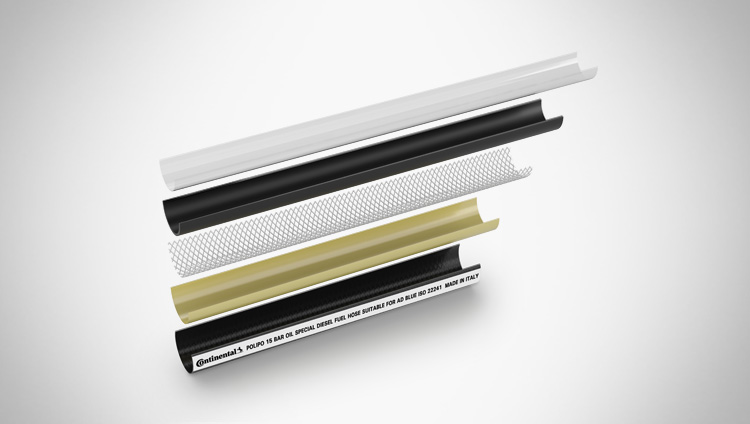

Polipo 15 Bar Oil Hose (915133) is a plastic hose with POLYURETHANE (PU) underlayer with polyester yarn reinforcement and PU adhesive middle layer, for pressurized transfer of oil, diesel oil, blue diesel, urea (ISO 22241).
Polipo 15 Bar Oil Hose (915133) is part of the Braided Series Hoses. They typically feature an inner hose which is formed by extrusion and kept open by air. The inner hose is then fed through a braiding machine, with two reels with multiple spools of Polyester yarn, which turn in opposite directions to form the cross-braiding.
Polipo 15 Bar Oil Hose Details
| Features | Value | |
 |
Smooth surface | ***** |
 |
Flexibility | *** |
 |
Abrasion resistance | *** |
 |
Temperature range | -10 °C 60 °C |
 |
Chemical Resistance | Contact TransDev |
 |
Crushing resistance | *** |
Specification
Ø Nominal |
Ø Nominal |
Ø i.d. |
Ø o.d. |
Working
|
Working
|
Working
|
Bursting
|
Bending radius |
Weight
|
# Wires for angle |
Coil length |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | bar | bar | bar | bar | mm | g/m | n° x a° | m |
| 12.7 | 1/2 | 12,7 | 18.5 | 15 | 10 | 6 | 45 | 80 | 205 | 18×54° | 100 |
| 19 | 3/4 | 19 | 26 | 15 | 10 | 6 | 45 | 130 | 350 | 24×54° | 60 |
| 19.5 | 3/4 | 19.2 | 26.5 | 15 | 10 | 6 | 45 | 130 | 360 | 24X54° | 60 |
| 25 | 1 | 25 | 35 | 15 | 10 | 6 | 45 | 180 | 640 | 36×54° | 60 |
All technical specifications apply to a temperature of 23° C ± 2° C (ISO 291)
The tolerance on all specifications ±5% (Tolerance Percentage is applicable on ALL DATA across our range)
