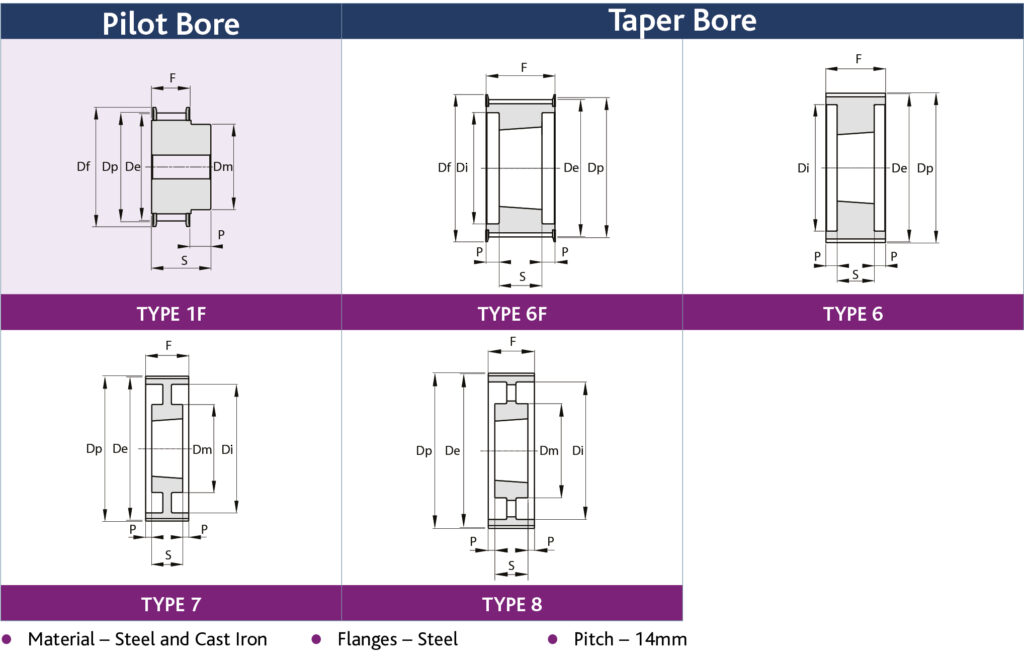

C14M Pulleys – to Suit 125mm Wide Belt (SYNCHROCHAIN® or POLY CHAIN®)
| SYNCHROCHAIN® Code | POLYCHAIN® Code | Material | No. teeth | Type | Bush no. | Max. bore (metric) | Diameters (mm) | DI | DM | F | P | S | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DP | DE | DF | ||||||||||||
| 38-C14M-125 | 14M-38S-125 | Steel | 38 | 1F | PB = 25.4 | 115 | 169.34 | 166.54 | 183 | – | 141 | 141 | 20 | 161 |
| 40-C14M-125 | 14M-40S-125 | Steel | 40 | 1F | PB = 25.4 | 125 | 178.25 | 175.45 | 188 | – | 156 | 141 | 20 | 161 |
| 44-C14M-125 | 14M-44S-125 | Steel | 44 | 1F | PB = 25.4 | 140 | 196.08 | 193.28 | 211 | – | 169 | 141 | 20 | 161 |
| 48-C14M-125 | 14M-48S-125 | Steel | 48 | 1F | PB = 25.4 | 160 | 213.90 | 211.11 | 226 | – | 185 | 141 | 20 | 161 |
| 50-C14M-125 | 14M-50S-125 | Steel | 50 | 6F | 3525 | 100 | 222.82 | 220.02 | 240 | 180 | – | 141 | 38 | 65 |
| 56-C14M-125 | 14M-56S-125 | Steel | 56 | 6F | 3525 | 100 | 249.55 | 246.76 | 256 | 207 | – | 141 | 38 | 65 |
| 60-C14M-125 | 14M-60S-125 | Steel | 60 | 6 | 4030 | 115 | 267.38 | 264.58 | – | 224 | – | 141 | 32.5 | 76 |
| 64-C14M-125 | 14M-64S-125 | Steel | 64 | 6 | 4030 | 115 | 285.21 | 282.41 | – | 242 | – | 141 | 32.5 | 76 |
| 72-C14M-125 | 14M-72S-125 | Cast Iron | 72 | 7 | 4030 | 115 | 320.86 | 318.06 | – | 278 | 215 | 141 | 32.5 | 76 |
| 80-C14M-125 | 14M-80S-125 | Cast Iron | 80 | 7 | 4030 | 115 | 356.51 | 353.71 | – | 314 | 215 | 141 | 32.5 | 76 |
| 90-C14M-125 | 14M-90S-125 | Cast Iron | 90 | 7 | 4030 | 115 | 401.07 | 398.27 | – | 360 | 215 | 141 | 32.5 | 76 |
| 112-C14M-125 | 14M-112S-125 | Cast Iron | 112 | 8 | 4535 | 125 | 499.11 | 496.31 | – | 456 | 215 | 141 | 26 | 89 |
| 140-C14M-125 | 14M-140S-125 | Cast Iron | 140 | 8 | 4535 | 125 | 623.89 | 621.09 | – | 581 | 215 | 141 | 26 | 89 |
| 168-C14M-125 | 14M-168S-125 | Cast Iron | 168 | 8 | 5040 | 125 | 748.66 | 745.87 | – | 706 | 267 | 141 | 19.5 | 102 |
| 192-C14M-125 | 14M-192S-125 | Cast Iron | 192 | 8 | 5040 | 125 | 855.61 | 852.82 | – | 812 | 267 | 141 | 19.5 | 102 |
PB= Pilot Bore
Please note: All dimensions subject to change. If a dimension is critical to your application please contact our Sales Department for confirmation.
For special or reworked pulleys please contact our Manufacturing Department for a quotation.
