9Dismountable designs (with cottered/split pins) on request.

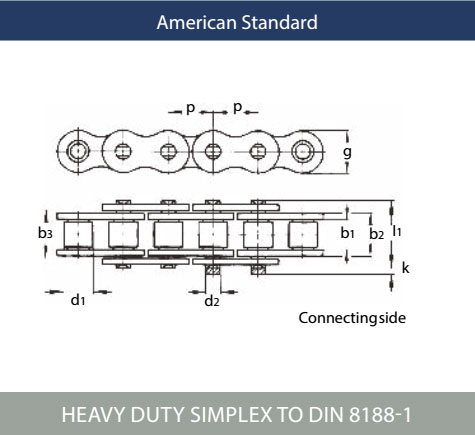

American Standard Heavy Duty Simplex Roller Chain ISO 606
- Heavy duty design
- Reinforced side plates
- Enlarged bearing areas
- Electrogalvanised or Nickel-plated chains on request. In this case chains may only have 80% of the tensile strength.
Chain | Pitch | Inner width | Inner link width | Outer plate width | Roller Ø | Pin Ø | Plate height | Projection over connecting link | Width over pin | Bearing area | Minimum tensile strength | Weight | Connecting links | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIN | p | b1 | b2 | b3 | d1 | d2 | g | k | l1 | f | FB | q | ||||
min. | max. | min. | max. | max. | max | max. | max. | min. | ≈ | |||||||
No. | Ind. | No. | mm | Inch | mm | mm | mm | mm | mm | mm | mm | mm | cm2 | kN | kg/m | No. |
50-1H | – | 15,875 | 5/8 | 9,40 | 14,60 | 14,73 | 10,16 | 5,08 | 15,0 | 4,1 | 23,4 | 0,75 | 32,0 | 1,18 | 11 | |
60-1H | 9 | – | 19,05 | 3/4 | 12,57 | 19,45 | 19,60 | 11,91 | 5,94 | 18,0 | 4,6 | 28,9 | 1,16 | 42,0 | 1,94 | 11 |
80-1H | 9 | – | 25,4 | 1 | 15,75 | 24,28 | 24,48 | 15,88 | 7,92 | 24,1 | 5,4 | 37,0 | 1,92 | 72,0 | 3,04 | 111 |
100-1H | 9 | – | 31,75 | 1 1/4 | 18,90 | 29,10 | 29,30 | 19,05 | 9,53 | 30,1 | 6,1 | 44,0 | 2,77 | 96,0 | 4,25 | 111 |
120-1H | 9 | – | 38,1 | 1 1/2 | 25,22 | 37,00 | 37,30 | 22,23 | 11,10 | 36,2 | 6,6 | 54,0 | 4,13 | 141,0 | 6,40 | 111 |
140-1H | 9 | – | 44,45 | 1 3/4 | 25,22 | 38,70 | 39,00 | 25,40 | 12,70 | 42,2 | 7,4 | 58,0 | 4,94 | 180,0 | 8,30 | 111 |
160-1H | 9 | – | 50,8 | 2 | 31,55 | 46,90 | 47,20 | 28,58 | 14,27 | 48,2 | 7,9 | 68,0 | 6,70 | 233,0 | 11,50 | 111 |
200-1H | 9 | – | 63,5 | 2 1/2 | 37,85 | 57,60 | 57,90 | 39,68 | 19,84 | 60,3 | 10,0 | 84,0 | 11,60 | 400,0 | 20,00 | 111 |
NB: Some of the items on this page may be non-stock. Please contact our Sales Department for confirmation.
Connecting links
No. 11 (E) Spring clip converting link |
No. 111 (S) Connecting link with cottered pin |
---|
