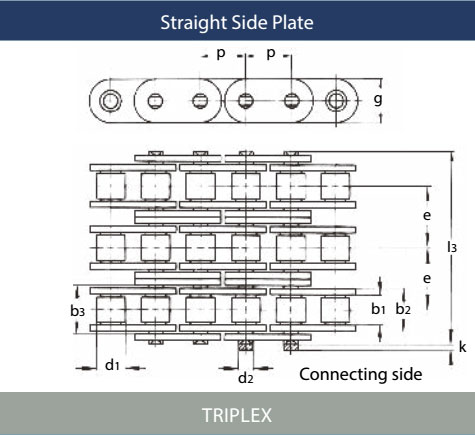

MARATHON Triplex Straight Side Plate Maintenance-Free Chain

MARATHON Triplex Straight Side Plate Maintenance-Free Chain

  • Can also be supplied with attachments
  • Standard sprockets can be used for these chains
Chain Pitch Inner
width
Inner
link
width
Outer
plate
width
Roller
Ø
Pin
Ø
Trans-
verse
pitch
Plate
height
Projection
over
connecting
link
Width
over
pin
Bearing
area
Minimum
tensile
strength
Weight Connecting
links
p b1 b2 b3 d1 d2 e g k l1 f FB q
min. max. min. max. max. max. max. max. min.
No. mm inch mm mm mm mm mm mm mm mm mm cm2 kN kg/m No.
455 GL-3MA 9,525 3/8 5,72 8,53 8,66 6,35 3,28 10,24 8,2 3,3 34,0 0,81 24,9 1,30 4,7,11,12,15
462 GL-3MA 12,7 1/2 7,75 11,30 11,43 8,51 4,45 13,92 11,5 3,9 44,9 1,51 56,0 2,21 4,7,11,12
501 GL-3MA 15,875 5/8 9,65 13,28 13,41 10,16 5,08 16,59 14,2 4,1 52,8 2,02 80,0 2,97 4,7,11
513 GL-3MA 19,05 3/4 11,68 15,62 15,75 12,07 5,72 19,46 15,5 4,6 61,7 2,68 94,0 3,43 4,7,11,12
548 GL-3MA 25,4 1 17,02 25,40 25,60 15,88 8,28 31,88 24,0 5,4 99,9 6,31 211,0 8,25 4,7,11
563 GL-3MA 31,75 1 1/4 19,56 29,00 29,20 19,05 10,19 36,45 26,4 6,1 116,0 8,87 300,0 11,66 4,7,11,12
596 GL-3MA 38,1 1 1/2 25,40 37,90 38,20 25,40 14,63 48,36 33,4 6,6 150,0 16,63 523,0 22,00 4,7,111,12

NB: Some of the items on this page may be non-stock. Please contact our Sales Department for confirmation.


 No. 4 (B)
Inner link
 No. 7 (A)
Outer link
(to be riveted)
 No. 11 (E)
Spring clip
connecting link

 No. 111 (S)
Connecting link
with cottered pin
 No. 12 (L)
Single cranked link
 No. 15 (C)
Double cranked link
