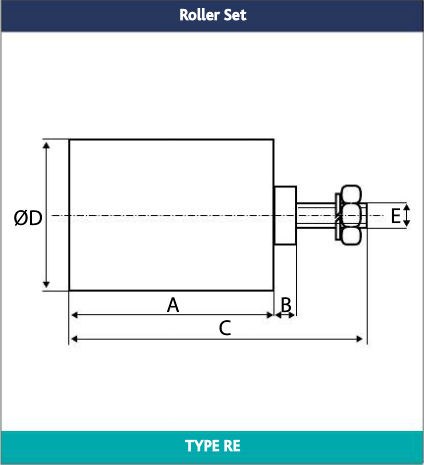

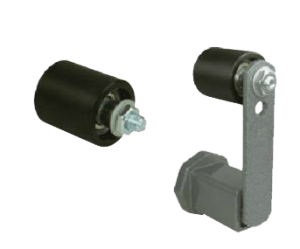

Roller Set Type RE
The RESATEC® Belt Tensioner is used for automatic and maintenance-free tensioning of Vee, Flat and Tooth Belts. (Arm not included.)
Type | A | B | C | ØD | E | Weight (kg) | Suitable for |
---|---|---|---|---|---|---|---|
RE2 | 35 | 3 | 51 | 30 | M8 | 0.075 | TE2 |
RE3/4 | 45 | 6 | 67 | 40 | M10 | 0.170 | TE3/TE4 |
RE5 | 60 | 7.5 | 89 | 60 | M12 | 0.395 | TE5 |
RE6 | 90 | 9 | 127 | 80 | M20 | 1.200 | TE6/TE7 |
RE7 | 135 | 7 | 167 | 80 | M20 | 1.700 | TE7 |
Tensioner-Lock Type TL
Type | A | B | C | D | E | F | Suitable for | Weight (kg) | |
TL5 | 8 | 104 | 130 | 74.5 | 60 | 13 | TE5 | 0.120 | |
TL6 | 10 | 128 | 161 | 94 | 75 | 17 | TE6 | 0.230 |
The Tensioner-Lock is required to obtain sufficient friction lock, when it cannot be obtained due to bad surfaces. (Material: Alu Plate)
