Rubber Suspension Unit Type LTA

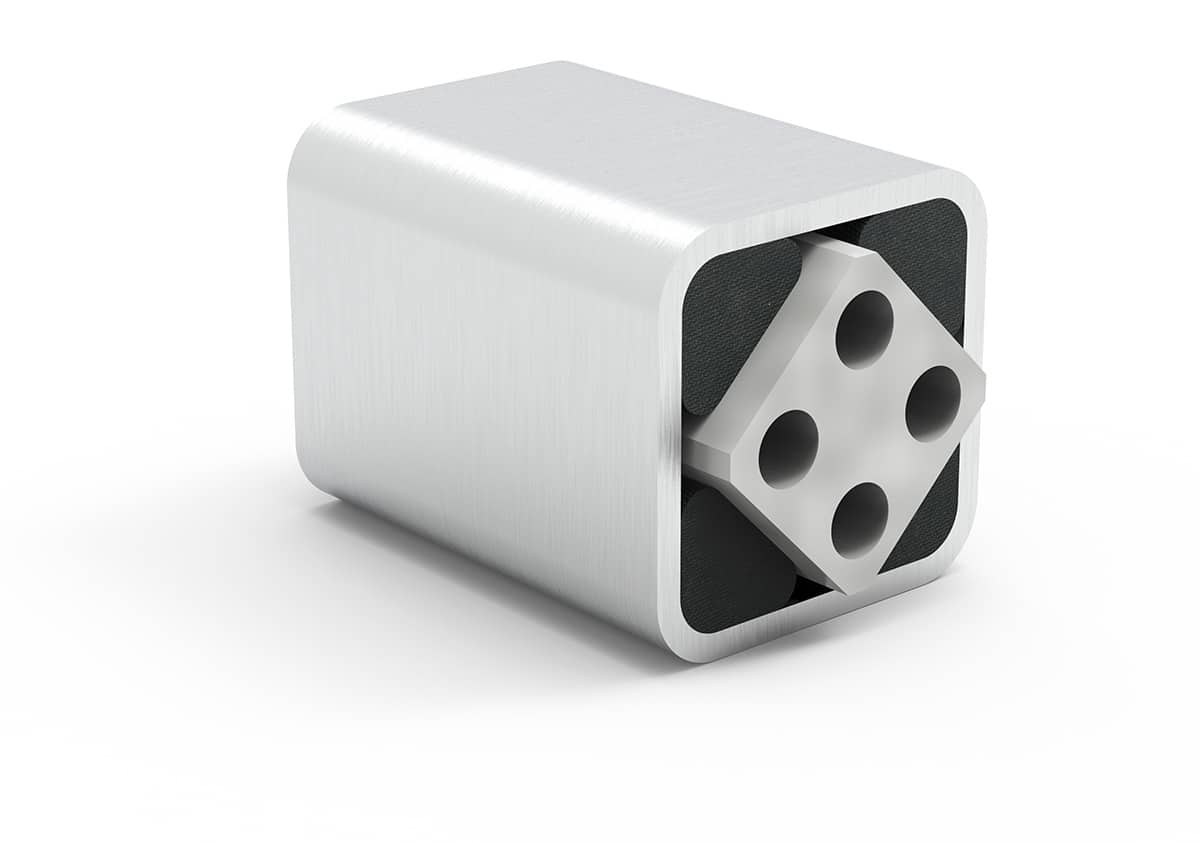

The RESATEC® Rubber Suspension Units can be applicable for any type of industry. With a torque angle of ±32° and almost unlimited fixing possibilities, the units are very suitable for modern, maintenance free engineering; even more as they often have a multi-function role of tensioning, pivoting, bearing and damping. The housing is made of Steel, Zinc plated or protected with a Lead and Cadmium free powder coating. The inner squares are made partly of light metal. The through holes can be tapped if required.
Type | Torque min. NM at 32° |
A | B | C | D | ØE | F | Weight (kg) |
---|---|---|---|---|---|---|---|---|
LTA 4-30 | 20 | 30 | 35 | 32 | 18 | 6 | 12 | 0.10 |
LTA 4-50 | 34 | 50 | 55 | 32 | 18 | 6 | 12 | 0.15 |
LTA 4-80 | 54 | 80 | 85 | 32 | 18 | 6 | 12 | 0.26 |
LTA 5-40 | 55 | 40 | 45 | 45 | 27 | 8 | 20 | 0.26 |
LTA 5-60 | 85 | 60 | 65 | 45 | 27 | 8 | 20 | 0.37 |
LTA 5-100 | 140 | 100 | 105 | 45 | 27 | 8 | 20 | 0.62 |
LTA 6-60 | 160 | 60 | 70 | 60 | 38 | 10 | 25 | 0.61 |
LTA 6-80 | 210 | 80 | 90 | 60 | 38 | 10 | 25 | 0.80 |
LTA 6-120 | 320 | 120 | 130 | 60 | 38 | 10 | 25 | 1.15 |
LTA 7-80 | 310 | 80 | 90 | 75 | 45 | 12 | 35 | 1.01 |
LTA 7-100 | 390 | 100 | 110 | 75 | 45 | 12 | 35 | 3.00 |
LTA 7-150 | 580 | 150 | 160 | 75 | 45 | 12 | 35 | 4.45 |
LTA 8-120 | 760 | 120 | 130 | 80 | 50 | M12x40 | 40 | 3.70 |
LTA 8-200 | 1370 | 200 | 210 | 80 | 50 | M12x40 | 40 | 6.20 |
LTA 8-300 | 2050 | 300 | 310 | 80 | 50 | M12x40 | 40 | 9.20 |
