Motor Base Type MW10

Motor Base Type MW10

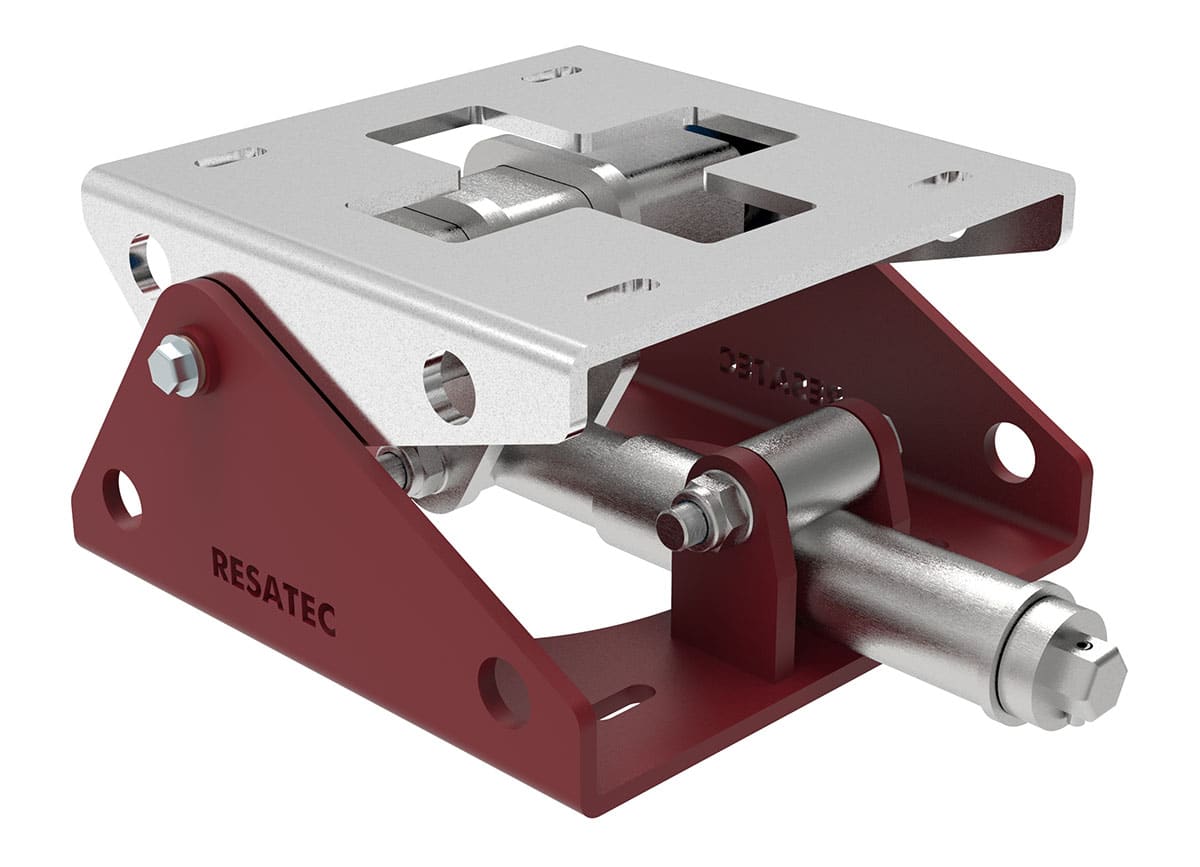

Motor Base
MW 10

The MW-10 is made for belt drives with motors from 37 kW to 200 kW output.

Depending on the specitications of the drive system, the motor base can be steplessly adjusted via a single, maintenance-free pretensioning unit equipped with axial ball bearings for smooth operation.

Indentical mounting holes on the motor and base plate are suitable for all motor sizes, from IEC 2058S – IEC 315M and NEMA 404T – NEMA 4477.

This and the compact design allow easy installation even in existing systems with limited space. The use of the MW-10 motor base guarantees optimum belt tension at all times thanks to it self-regulating function. This means maximum efficiency and minimum maintenance!

Dimensions

Type Motor
Frame
Size		 Motor Power (approx.) A B K AB BB C D E F Weight
IEC 1000 min −¹
NEMA 1200 min −¹		 IEC 1500 min −¹
NEMA 1800 min −¹		 mm mm mm mm mm mm mm mm mm kg
MW‑10‑450 IEC 250M 37 kW 55 kW 406 349 22 510 525 560 624 560 765 135
NEMA 404T 60 hp 100 hp 406 311 22 510 525 560 624 560 765 135
NEMA 405T 75 hp 125 hp 406 349 22 510 525 560 624 560 765 135
MW‑10‑550 IEC 280S 45 kW 75 kW 457 368 22 560 590 626 690 560 765 148
IEC 280M 55 kW 90 kW 457 419 22 560 590 626 690 560 765 148
NEMA 444T 100 hp 125–150 hp 457 368 22 560 590 626 690 560 765 148
NEMA 445T 125–150 hp 150–200 hp 457 419 22 560 590 626 690 560 765 148
MW‑10‑700 IEC 315S 75 kW 110 kW 508 406 26 630 740 776 840 600 800 178
IEC 315M 90–110 kW 132–160 kW 508 457 26 630 740 776 840 600 800 178
NEMA 447T 150–200 hp 200–250 hp 457 508 26 / 22 630 740 776 840 600 800 178

NB: All motor plates of MW 10 motor bases have an “offset” of 100 mm.

Capacity Limits

V Belt Profile Width Height Pulley Diameter Initial Operation Test Force F Operational Test Force F
mm mm mm N N
XPZ/SPZ 10 8 56–71 20 16
75–90 22 18
95–125 25 20
≥125 28 22
XPA/SPA 13 10 80–100 28 22
106–140 38 30
150–200 45 36
≥200 50 40
XPB/SPB 16 13 112–160 50 40
170–224 62 50
236–355 77 62
≥355 81 65
XPC/SPC 22 18 224–250 87 70
265–355 115 92
≥375 144 115
Z 10 6 56–100 5–7.5
A 13 8 80–140 10–15
B 17 10 125–200 20–30
C 22 12 200–400 40–60
D 32 19 355–600 70–105

NB: Derive the required indentation depth for intermediate lengths proportionally from 16 mm/m (5/8″ per Yard).
