AT3 BRECOFLEX® & BRECO® (M) & (V)

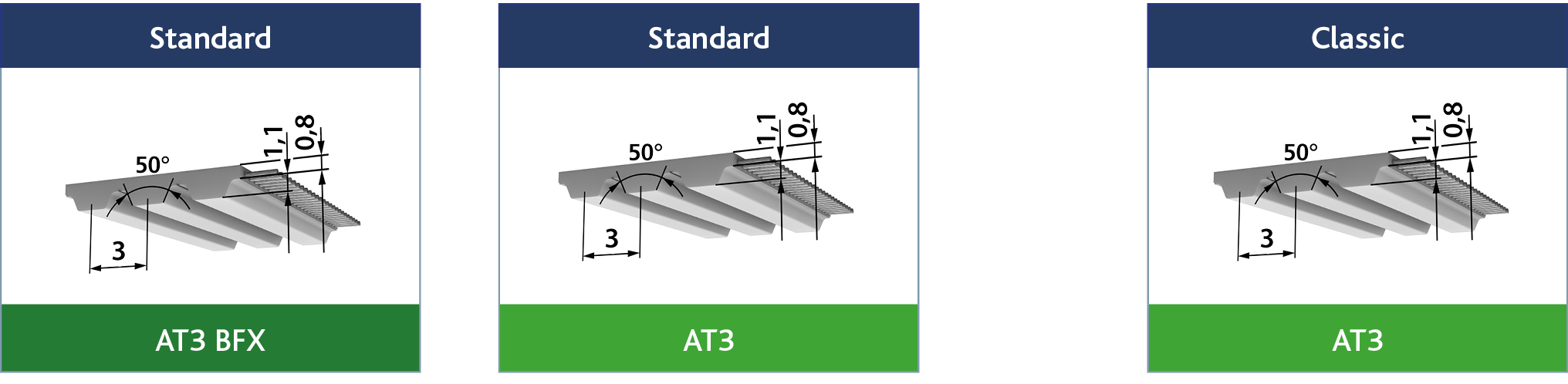

Polyurethane, Steel reinforced – High Power AT Profile in metric pitch with trapezoidal toothform.
AT3 BRECOFLEX®
Available versions for AT3:
- AT3: single sided
- Special Polyurethane upon request
- Antistatic, coloured, machined, ground and punched belts
- Backings
| Belt widths (mm) – Intermediate belt widths on request | ||||
|---|---|---|---|---|
| 6 | 10 | 16 | 25 | 32 |
| AT3 BFX | Available lengths & versions |
| Preferred lengths | 720 up to 1710 |
|---|---|
| Minimum purchase amount | 1 sleeve, 100mm wide |
| Any number of teeth available from | 720mm up to 1,710mm |
| E tension member (standard) | o |
| Stainless Steel tension | o |
| PAZ | x |
| AT 3 BRECOFLEX® Preferred lengths (mm) | ||||
| 720 | 819 | 918 | 1017 | 1116 |
| 1215 | 1314 | 1413 | 1512 | 1611 |
| 1710 | ||||
| AT 3 – Allowable tensile load | ||||||
|---|---|---|---|---|---|---|
| Belt width | b (mm) | 6 | 10 | 16 | 25 | 32 |
| Tension member loadings Fadm(N) | BFX/M | 190 | 380 | 645 | 1100 | 1400 |
| V | 90 | 180 | 285 | 500 | 632 | |
| Belt weight | kg/m | 0.014 | 0.023 | 0.037 | 0.058 | 0.074 |
BRECO® Open length (M) & joined (V)
| AT3 (M/V) | Available lengths & versions |
| Standard delivery lengths (M) | Rolls of 50 or 100m |
|---|---|
| Cut to length/lengths > 100m | On request |
| Minimum length joined (v) | 480mm |
| Standard material | TPUST11) |
| Standard tension member | – |
| E tension member (standard) | x |
| Stainless Steel tension member | o |
| PAZ | x |
| DL/DL-PAZ | – |
| T/T-PAZ | – |
| T/T-PAZ | – |
x Available, minimum purchase amounts may apply
o Minimum purchase amount on request
– Not available
1) Further materials on request
Drive Type A
| Type A | AT3(BFX) | AT3(M/V) |  |
|---|---|---|---|
| Zmin | 15 | 15 | |
| dmin | 20 | 30(20) |
Drive Type B
| Type B | AT3(BFX) | AT3(M/V) |  |
|---|---|---|---|
| Zmin | 20 | 25(20) | |
| dmin | 20 | 30(20) |
Zmin = Minimum number of teeth.
dmin= Minimum diameter (mm)
Values in brackets apply to joined timing belts.
