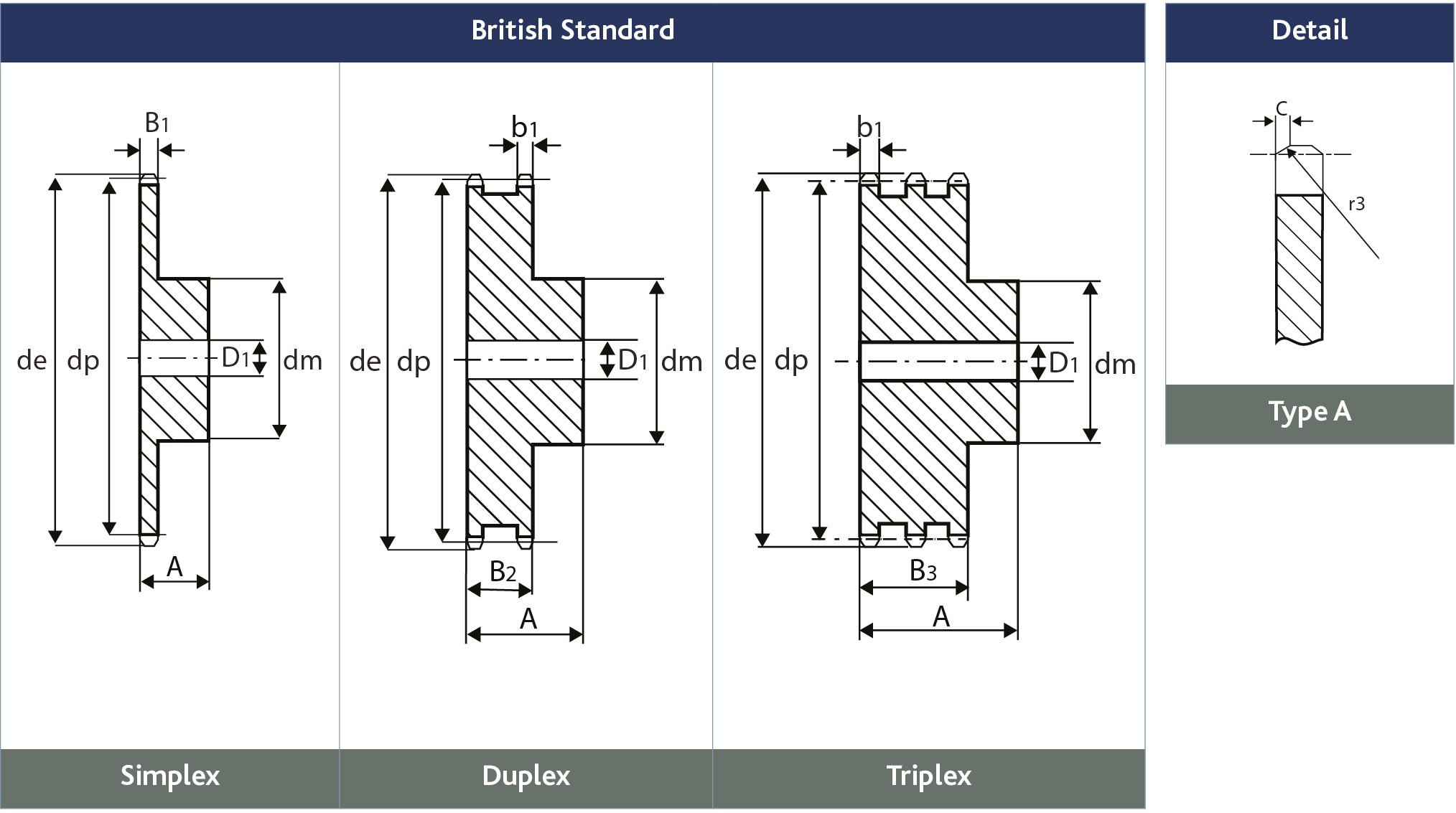

BS (10B) Sprockets – 5/8

BS (10B) Sprockets – 5/8

Tooth radius: r3 = 16
Radius size: C = 1.6
Tooth width: B1 = 9.1
Tooth width: b1 = 9.0
Tooth width: B2 = 25.5
Tooth width: B3 = 42.1

No.
teeth

Outside
dia. de

Pitch
dia. dp

Simplex*

Duplex*

Triplex*

dm

D1

A

dm

D1

A

dm

D1

A

8 47 41.48 25 10 25 25 12 40 25 12 55
9 52.6 46.42 30 10 25 30 12 40 30 12 55
10 57.5 51.37 35 10 25 35 12 40 35 16 55
11 63 56.34 37 12 30 39 14 40 39 16 55
12 68 61.34 42 12 30 44 14 40 44 16 55
13 73 66.32 47 12 30 49 14 40 49 16 55
14 78 71.34 52 12 30 54 14 40 54 16 55
15 83 76.36 57 12 30 59 14 40 59 16 55
16 88 81.37 60 12 30 64 16 45 64 16 60
17 93 86.39 60 12 30 69 16 45 69 16 60
18 98.3 91.42 70 14 30 74 16 45 74 16 60
19 103.3 96.45 70 14 30 79 16 45 79 16 60
20 108.4 101.49 75 14 30 84 16 45 84 16 60
21 113.4 106.52 75 16 30 85 16 45 85 20 60
22 118 111.55 80 16 30 90 16 45 90 20 60
23 123.4 116.58 80 16 30 95 16 45 95 20 60
24 128.3 121.62 80 16 30 100 16 45 100 20 60
25 134 126.66 80 16 30 105 16 45 105 20 60

No.
teeth

Outside
dia. de

Pitch
dia. dp

Simplex*

Duplex*

Triplex*

dm

D1

A

dm

D1

A

dm

D1

A

26 139 131.70 85 20 35 110 20 45 110 20 60
27 144 136.75 85 20 35 110 20 45 110 20 60
28 148.7 141.78 90 20 35 115 20 45 115 20 60
29 153.8 146.83 90 20 35 115 20 45 115 20 60
30 158.8 151.87 90 20 35 120 20 45 120 20 60
31 163.9 156.92 95 20 35 120 20 45 120 20 60
32 168.9 161.95 95 20 35 120 20 45 120 20 60
33 174.5 167.00 95 20 35 120 20 45 120 20 60
34 179 172.05 95 20 35 120 20< 45 120 20 60
35 184.1 177.10 95 20 35 120 20 45 120 20 60
36 189.1 182.15 100 20 35 120 20 45 120 25 60
37 194.2 187.20 100 20 35 120 20 45 120 25 60
38 199.2 192.24 100 20 35 120 20 45 120 25 60
39 204.2 197.29 100 20 35 120 20 45 120 25 60
40 209.3 202.34 100 20 35 120 20 45 120 25 60
57 296 288.18 108 25 43 120 25 59 136 25 74
60 310.8 303.32 108 25 43 120 25 59 136 25 74
76 392.1 384.16 108 25 43 120 25 59 145 30 75

* Bore Ø H12

All dimensions in mm. Intermediate sizes & special sprockets to drawing up to 1000mm diameter. Standard: to DIN 8187 ISO/R 606

Available from stock
Special order – typically 7-10 days

NB: Please refer here for tooth sizes above 76 teeth.
