ATK5 K6 BRECO® Open Length (M)/Joined (V)

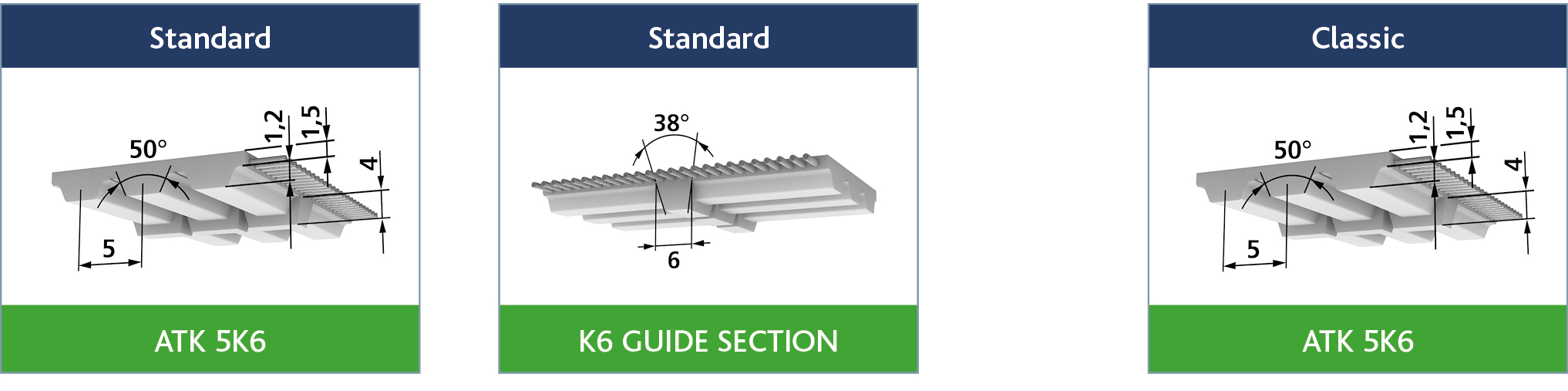

Polyurethane, steel reinforced, extruded open length & joined High Power AT Profile in metric pitch with trapezoidal toothform, self-tracking
BRECO® timing belts ATK5K6
- Polyurethane, steel reinforced, joined & open length belting
- High Power AT Profile in metric pitch with trapezoidal toothform, self-tracking
Available types for ATK5K6:
- Single sided
- Nylon tooth facing (PAZ)
- Nylon back facing (PAR)
- Nylon both facing (PAZ/PAR)
- Special polyurethanes upon request
- Antistatic, coloured, machined, ground and punched
Technical Specification
| ATK5K6 – Allowable tensile load by belt width | ||||||
|---|---|---|---|---|---|---|
| Belt width | b (mm) | 25 | 32 | 50 | ||
| Tension member loadings |
M | 1750 | 2240 | 3500 | ||
| V | 875 | 1120 | 1750 | |||
| Belt weight | kg/m | 0.089 | 0.118 | 0.177 | ||
Drive Type A
| Type A | ATK5K6 |  |
|---|---|---|
| Zmin | 25 | |
| dmin | 60 |
Drive Type B
| Type B | ATK5K6 |  |
|---|---|---|
| Zmin | 25 | |
| dmin | 60 |
Zmin = Minimum number of teeth. dmin= Minimum diameter (mm)
| Belt widths (mm) Intermediate belt widths on request |
|||||||
|---|---|---|---|---|---|---|---|
| 25 | 32 | 50 | |||||
| ATK5K6 (M/V) | Available lengths and versions | |
|---|---|---|
| Standard delivery lengths (M) | Rolls of 50 or 100m | |
| Cut to lengths/lengths > 100m | On request | |
| Minimum length joined (V) | 880mm | |
| Standard material | TPUST1) | |
| Steel tension member (standard) | – | |
| E tension member | x | |
| Stainless Steel tension member | o | |
| PAZ | x | |
| PAR | x | |
| PAZ-PAR | x | |
| DL/DL-PAZ | – | |
| DR/DR-PAZ | – | |
| T/T- PAZ | – | |
x Available, standard lengths (see table) without minimum purchase
o Minimum purchase amount on request
– Not available
1) Further materials on request
