TK10 K6 BRECO® Open Length (M)/Joined (V)
Polyurethane, Steel reinforced, extruded open length & joined, T Profile in metric pitch with trapezoidal toothform, self-tracking
BRECO® timing belts TK10K6
- Polyurethane, Steel reinforced, joined & open length belting

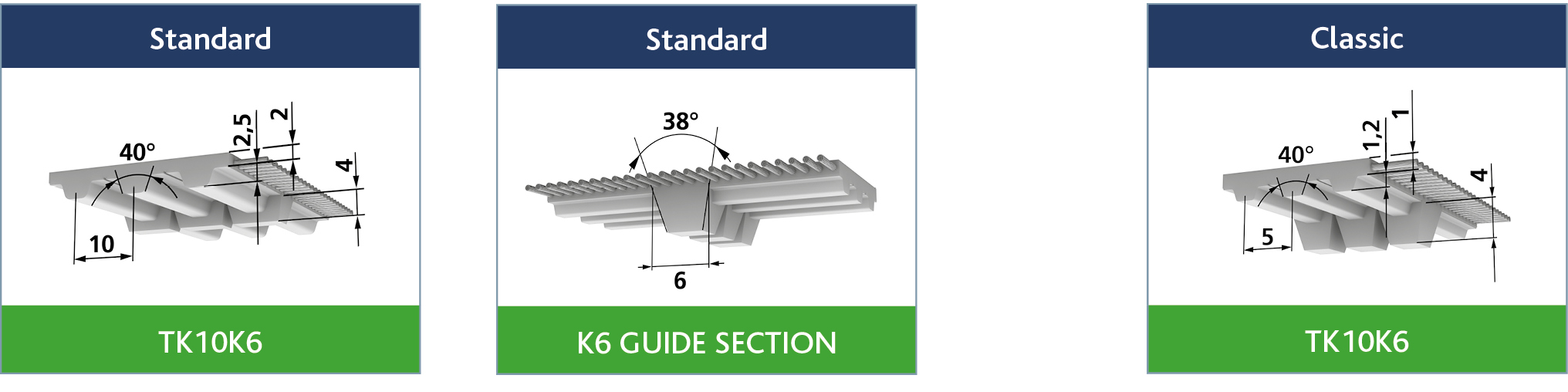

- Standard T Profile to DIN 7721 in metric
- pitch with trapezoidal toothform
Available types for TK10K6:
- Single sided
- Nylon tooth facing (PAZ)
- Nylon back facing (PAR)
- Nylon both facing (PAZ/PAR)
- Special polyurethanes upon request
- Antistatic, coloured, machined, ground and punched belts
Technical Specification
TK10K6 – Allowable tensile load by belt width | |||
---|---|---|---|
Belt width | b (mm) | 25 | 50 |
Tension member loadings Fadm(N) |
M | 2400 | 4200 |
V | 1200 | 2100 | |
Belt weight | kg/m | 0.129 | 0.239 |
Belt widths (mm) Intermediate belt widths on request | |
---|---|
25 | 50 |
TK10K6 (M/V) | Available lengths and versions | |
---|---|---|
Standard delivery lengths (M) | Rolls of 50 or 100m | |
Cut to lengths/lengths > 100m | On request | |
Minimum length joined (V) | 1,000mm | |
Standard material | TPUST1) | |
Steel tension member (standard) | x | |
E tension member | – | |
Stainless Steel or Aramid member | o | |
PAZ | x | |
PAR | x | |
PAZ-PAR | x | |
DL/DL-PAZ | – | |
DR/DR-PAZ | – | |
T/T- PAZ | – |
x Available, standard lengths (see table) without minimum purchase
o Minimum purchase amount on request
– Not available
1) Further materials on request
Drive Type A
Type A | TK10K6 | |
---|---|---|
Zmin | 20 | |
dmin | 60 | |
Drive Type B
Type B | TK10K6 | |
---|---|---|
Zmin | 25 | |
dmin | 80 | |
Zmin = Minimum number of teeth. dmin= Minimum diameter (mm)
